Fuel Pump Control Module 1

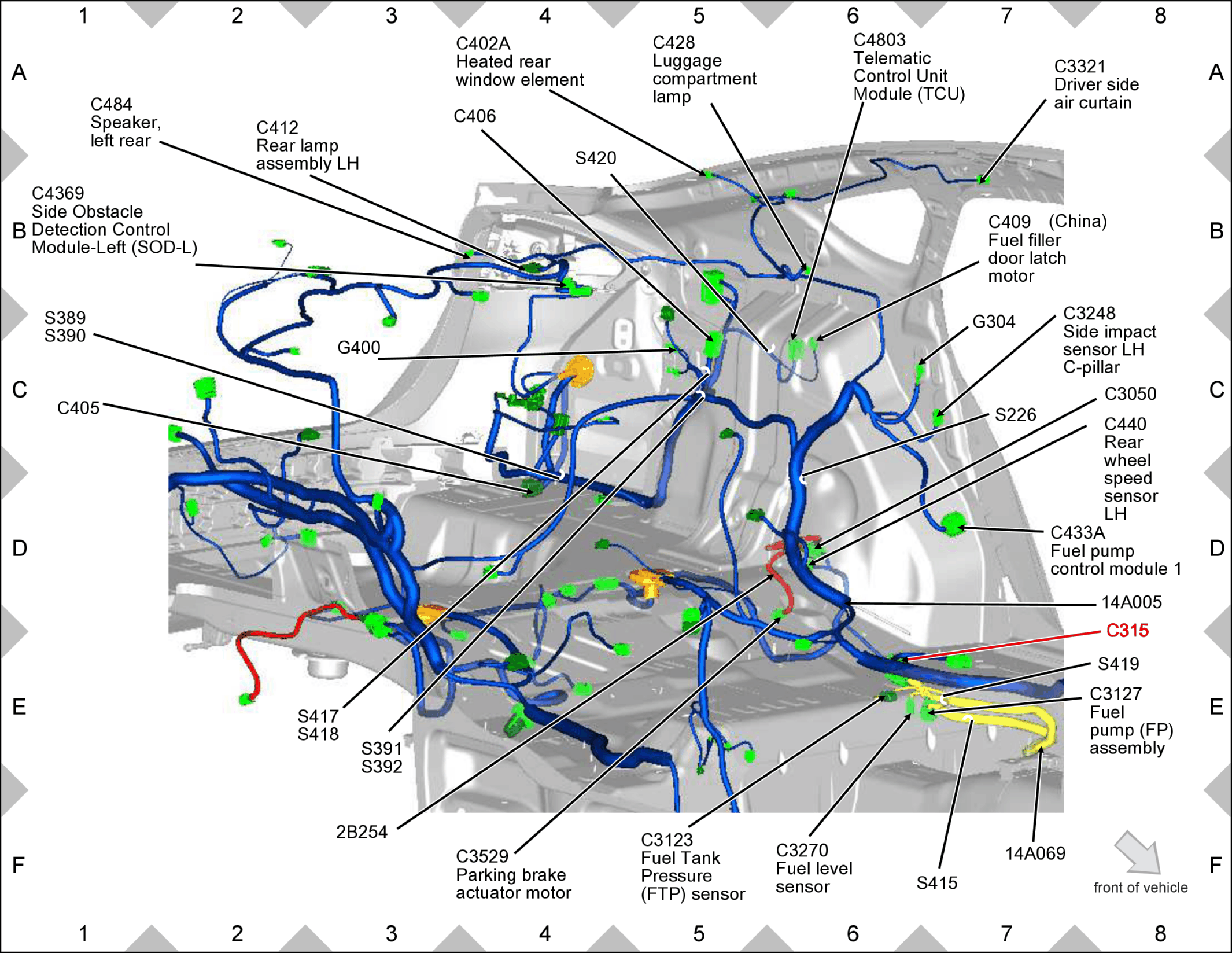

Fig 1: Fuel Pump Control Module 1) Components Location

GFDW78605

Courtesy of FORD MOTOR COMPANY
