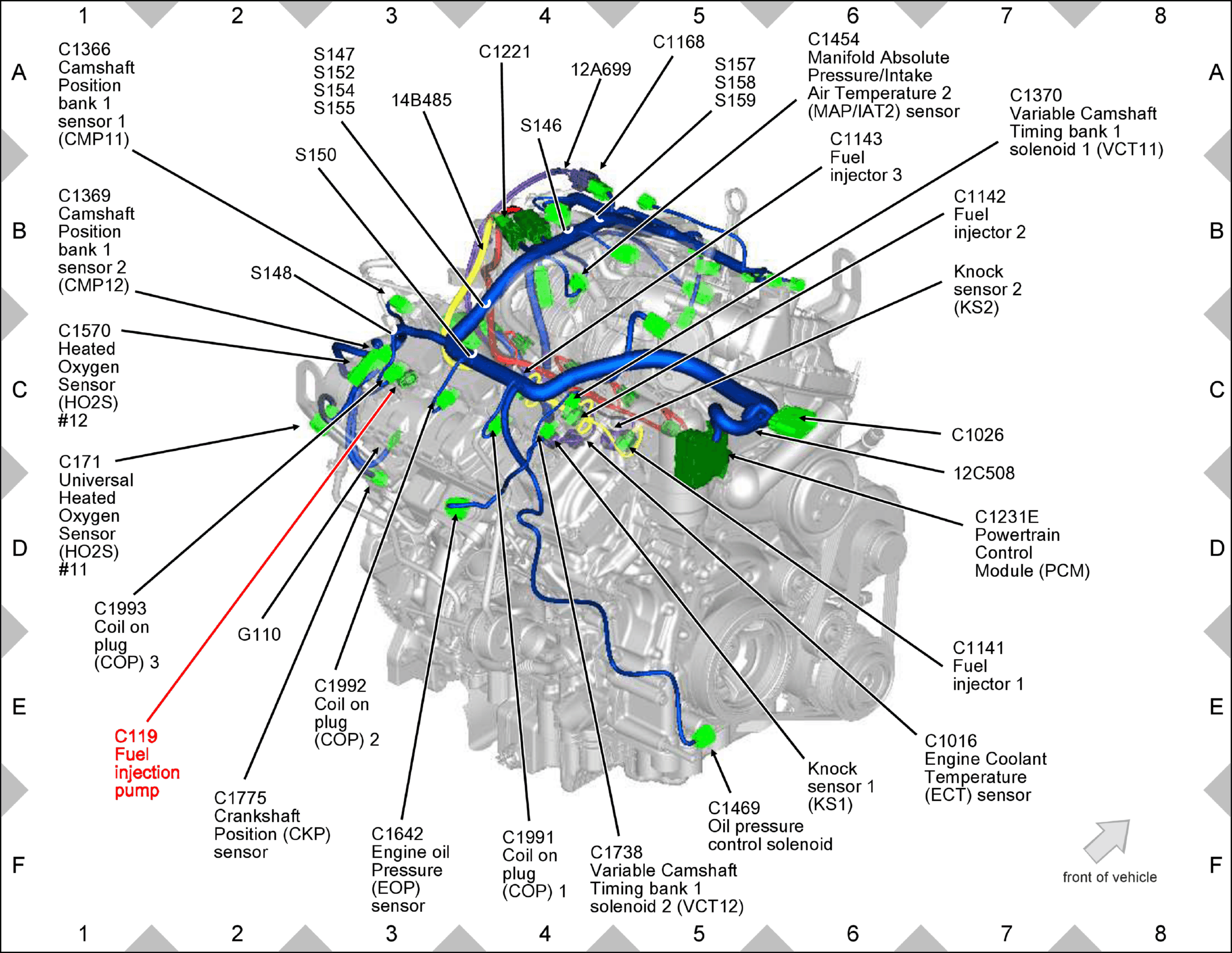

Home >> Ford >> 2018 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts - Fusion (Except Hybrid) >> Component Location Charts >> Fuel Injection Pump (2.7L)
