Front Wheel Speed Sensor LH

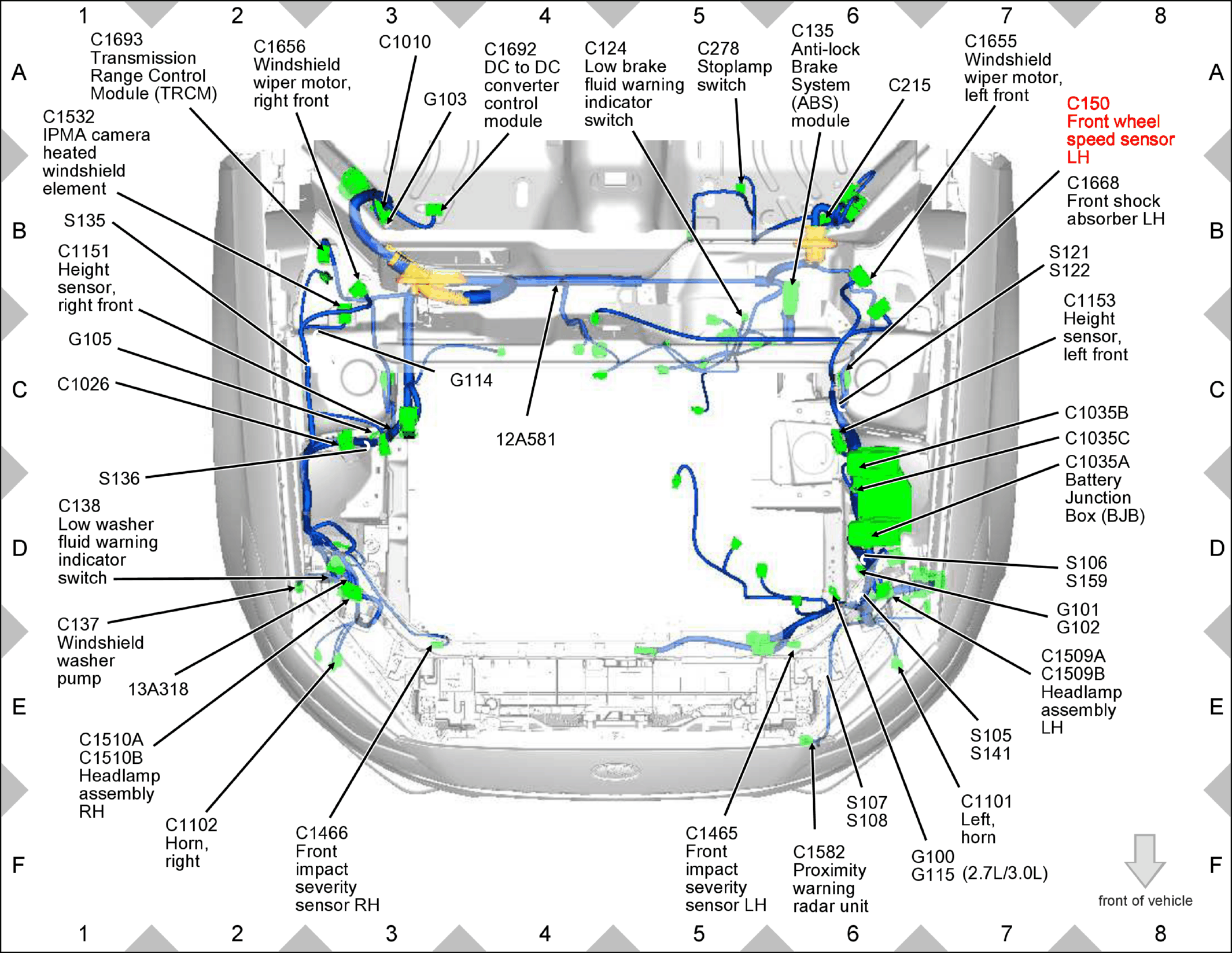

Fig 1: Front Wheel Speed Sensor LH Components Location

GFDW78560

Courtesy of FORD MOTOR COMPANY
