Front Power Outlet Socket

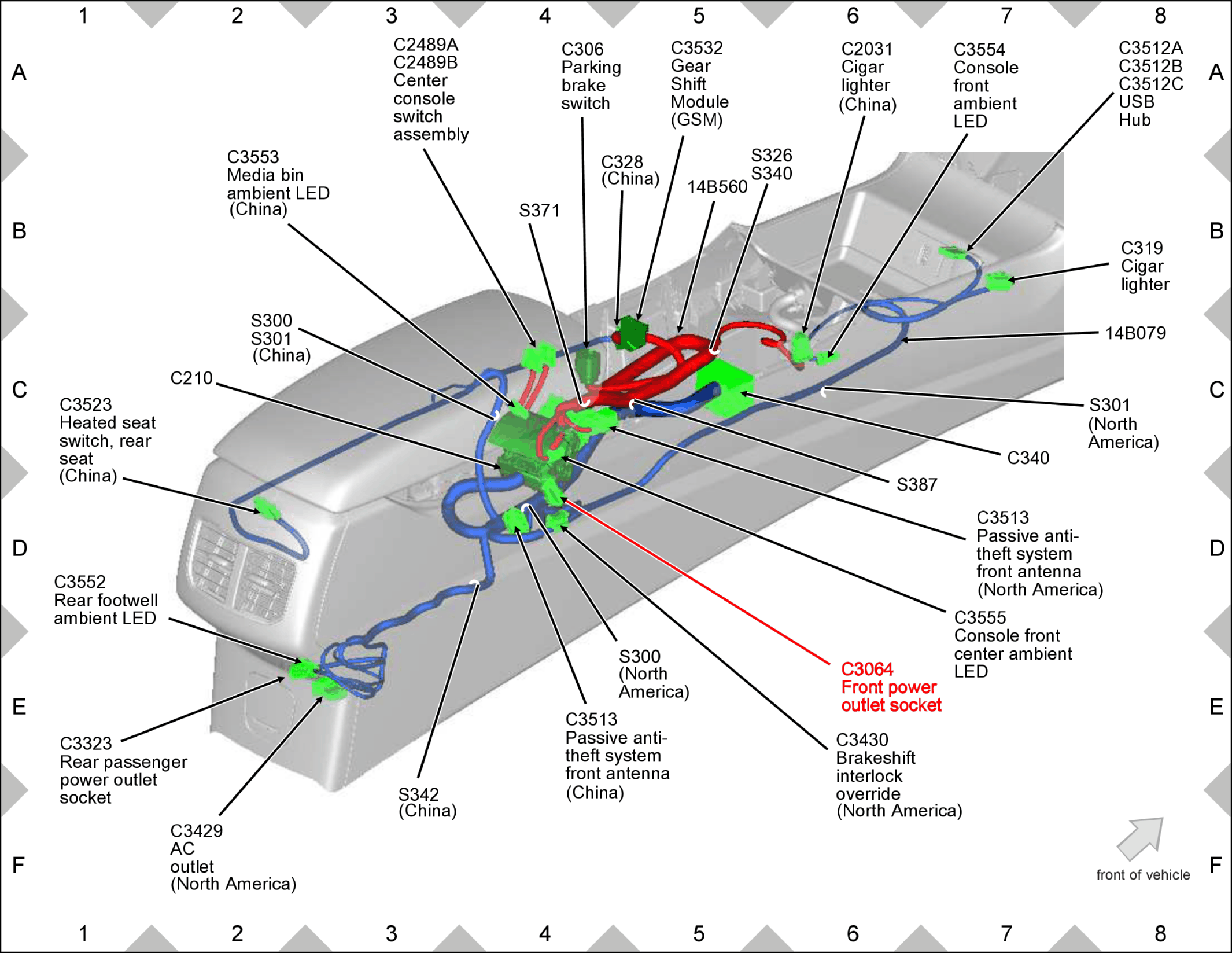

Fig 1: Front Power Outlet Socket Components Location

GFDW78554

Courtesy of FORD MOTOR COMPANY
