Front Inner Parking Aid Sensor LH (2.7L)

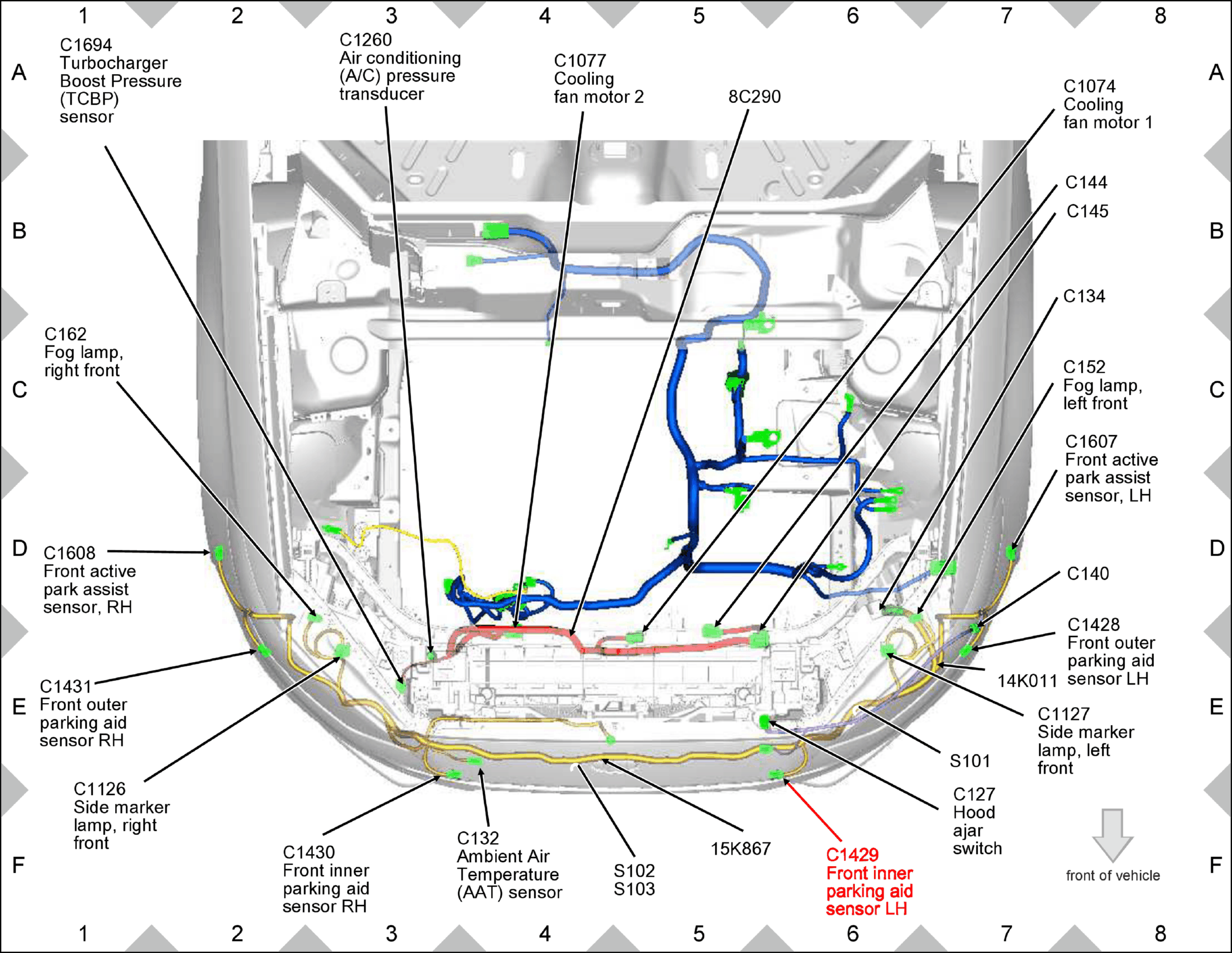

Fig 1: Front Inner Parking Aid Sensor LH (2.7L) Components Location

GFDW78538

Courtesy of FORD MOTOR COMPANY
