Front Inner Parking Aid Sensor LH (1.5L)

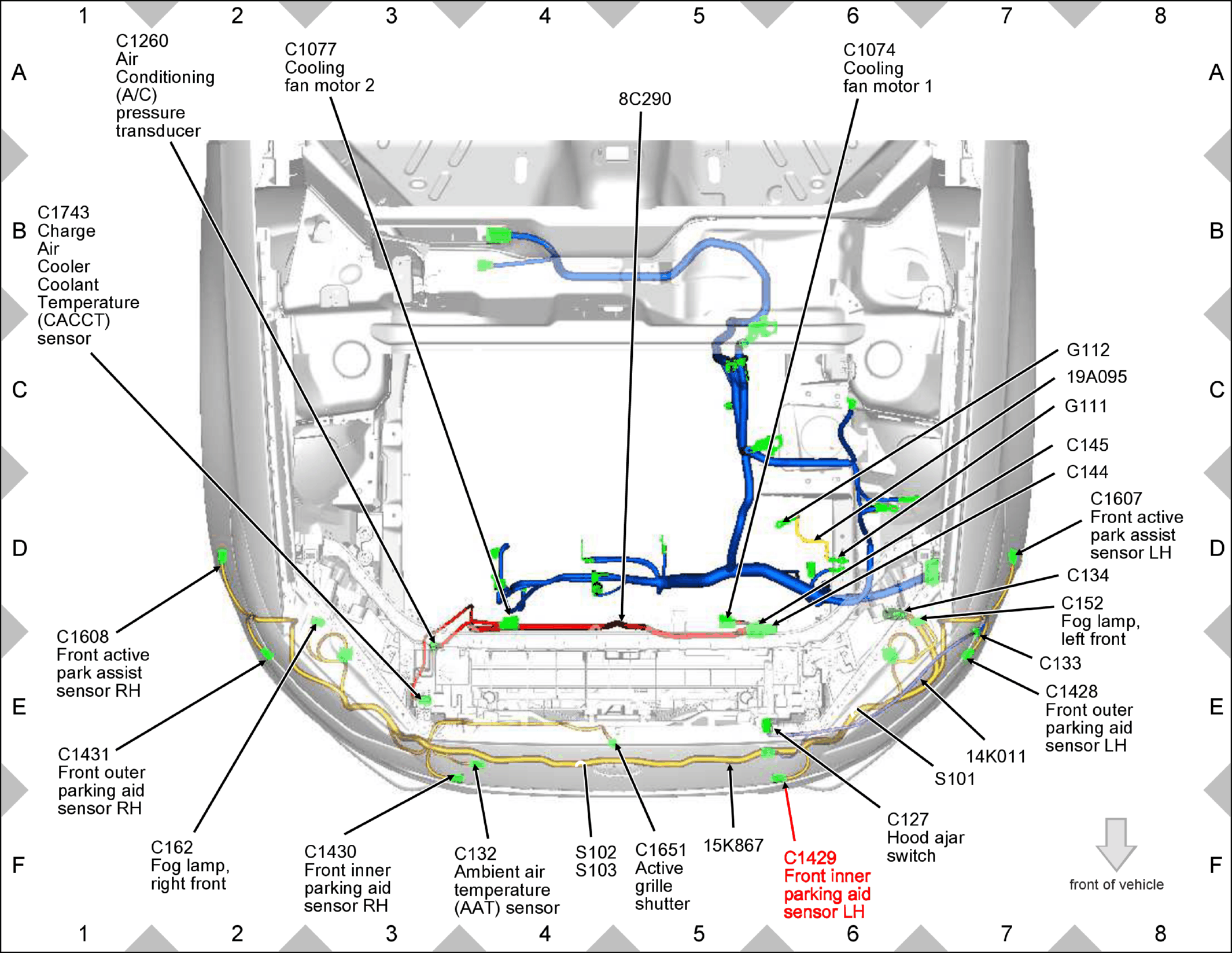

Fig 1: Front Inner Parking Aid Sensor LH (1.5L) Components Location

GFDW78539

Courtesy of FORD MOTOR COMPANY
