OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Front Door Lock Switch RH
Front Door Lock Switch RH

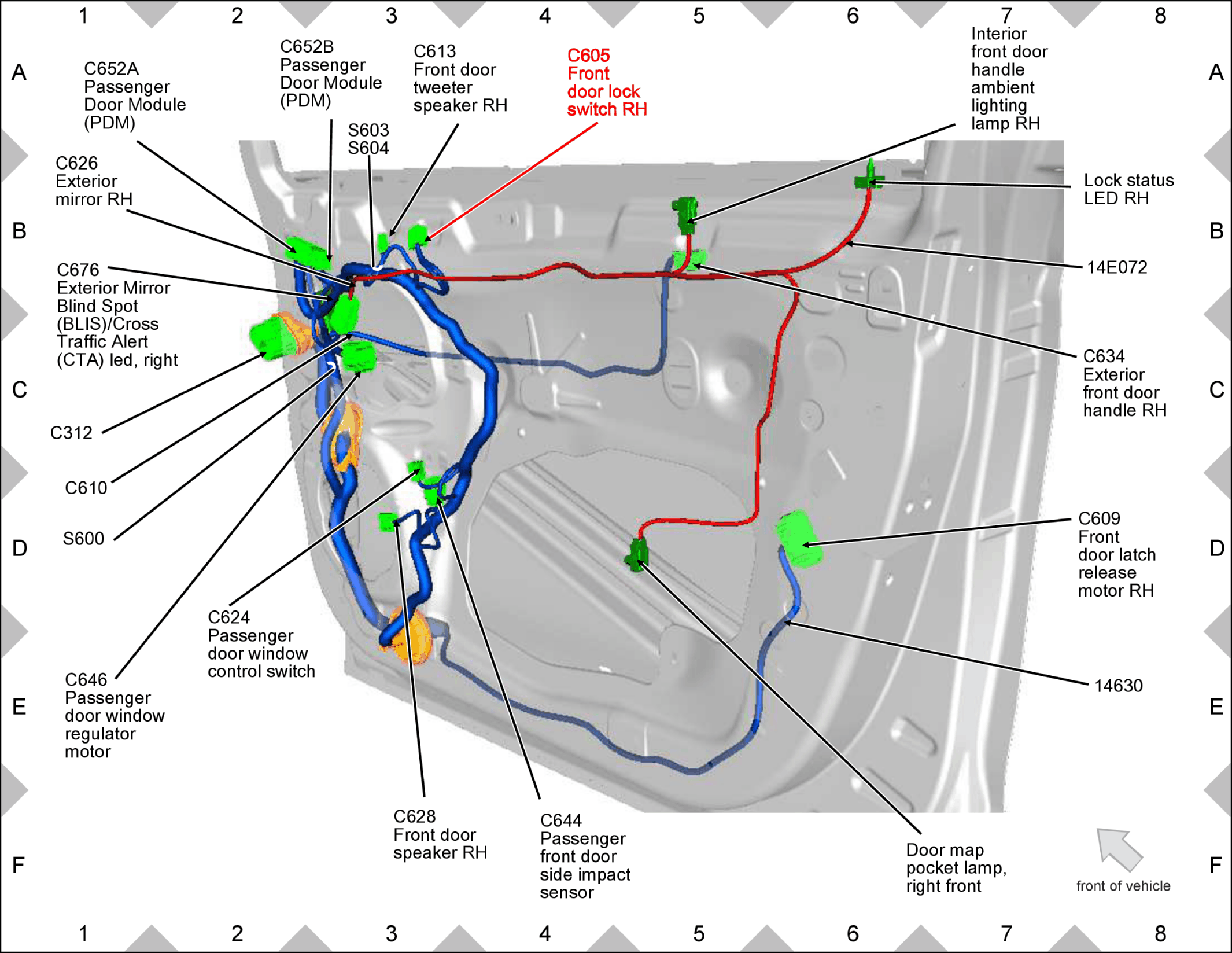

Fig 1: Front Door Lock Switch RH Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
