OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Front Door Latch Release Motor LH
Front Door Latch Release Motor LH

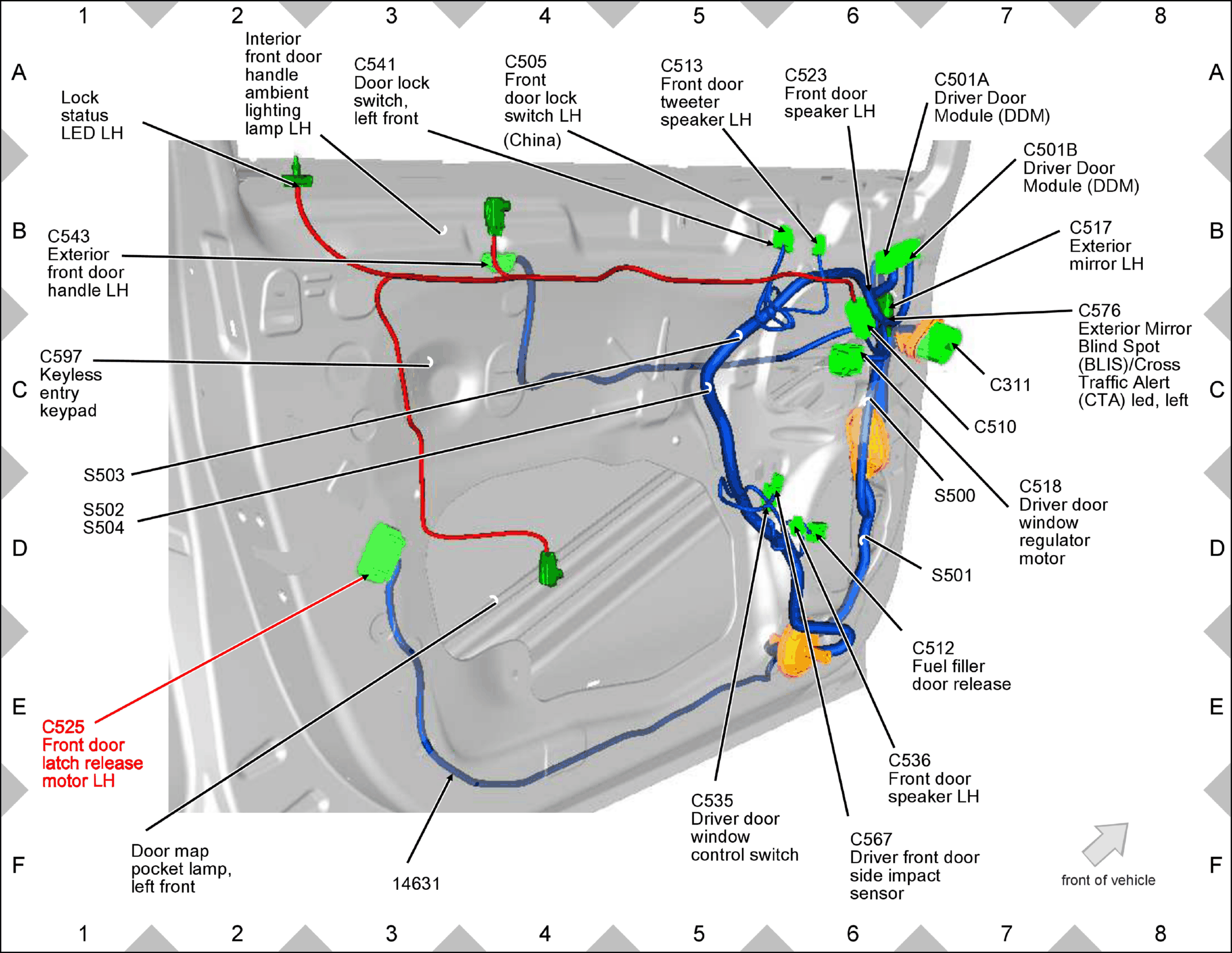

Fig 1: Front Door Latch Release Motor LH Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
