Front Display Interface Module (FDIM)

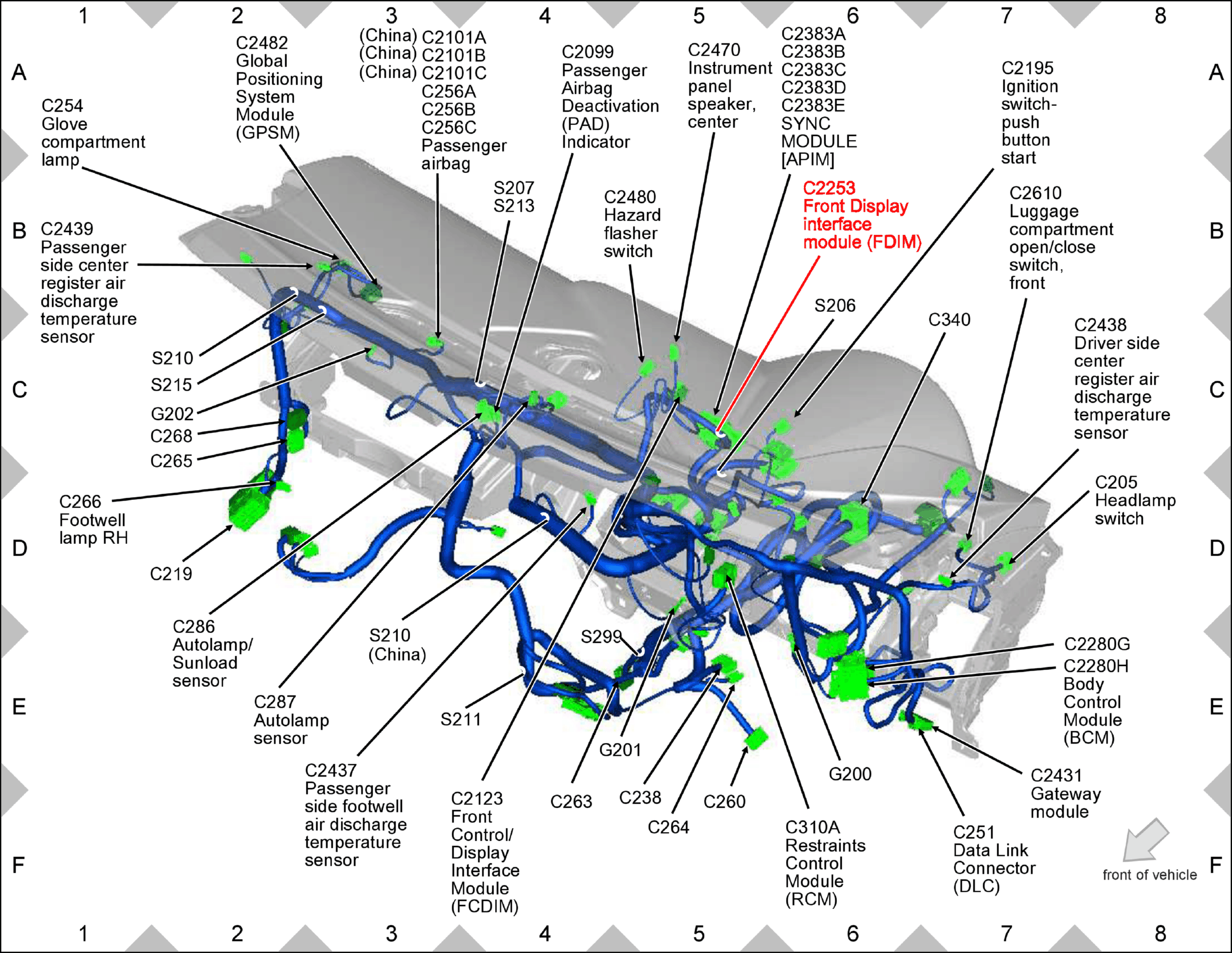

Fig 1: Front Display Interface Module (FDIM) Components Location

GFDW78517

Courtesy of FORD MOTOR COMPANY
