Front Control/Display Interface Module (FCDIM)

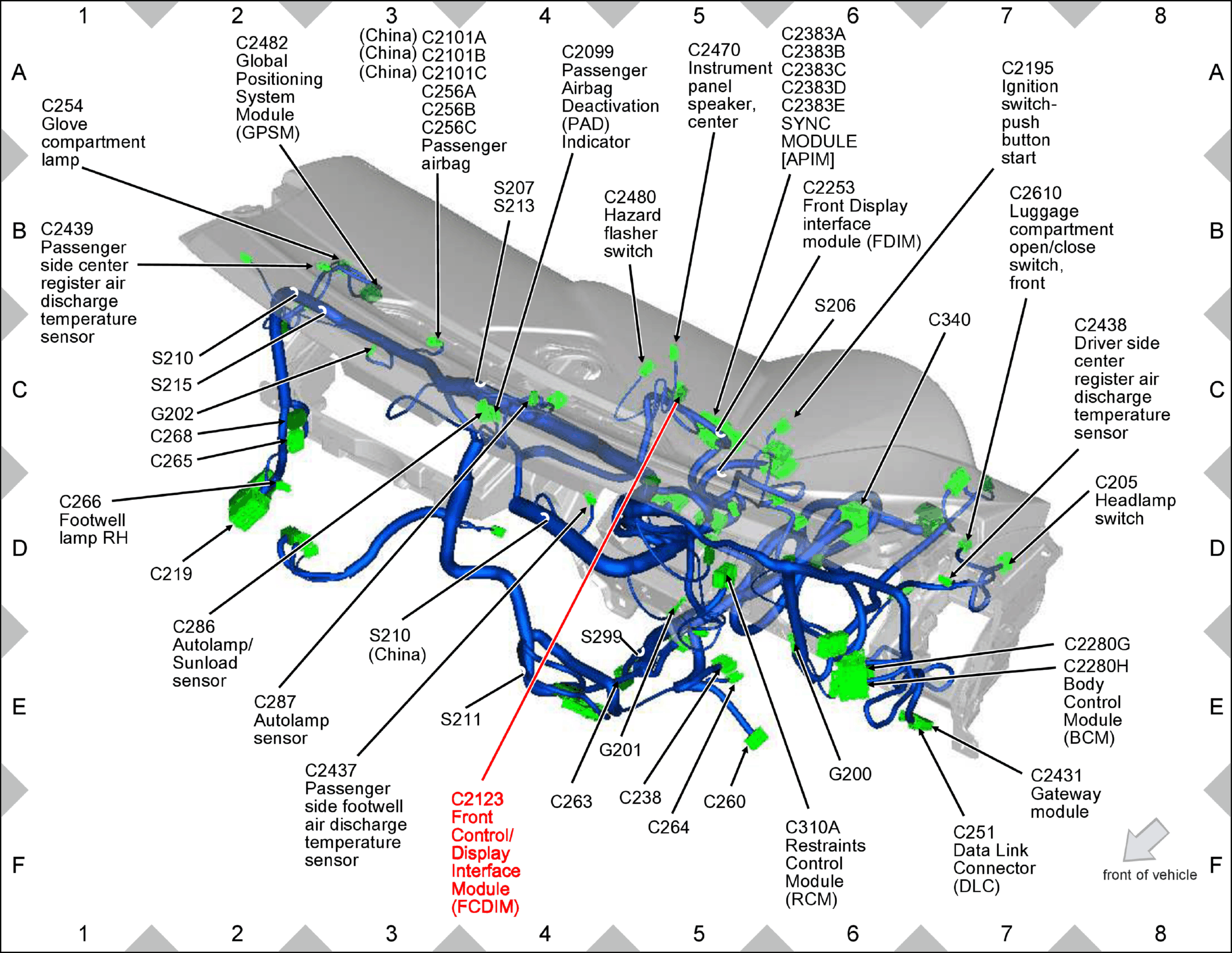

Fig 1: Front Control/Display Interface Module (FCDIM) Components Location

GFDW78514

Courtesy of FORD MOTOR COMPANY
