Front Control Interface Module (FCIM)

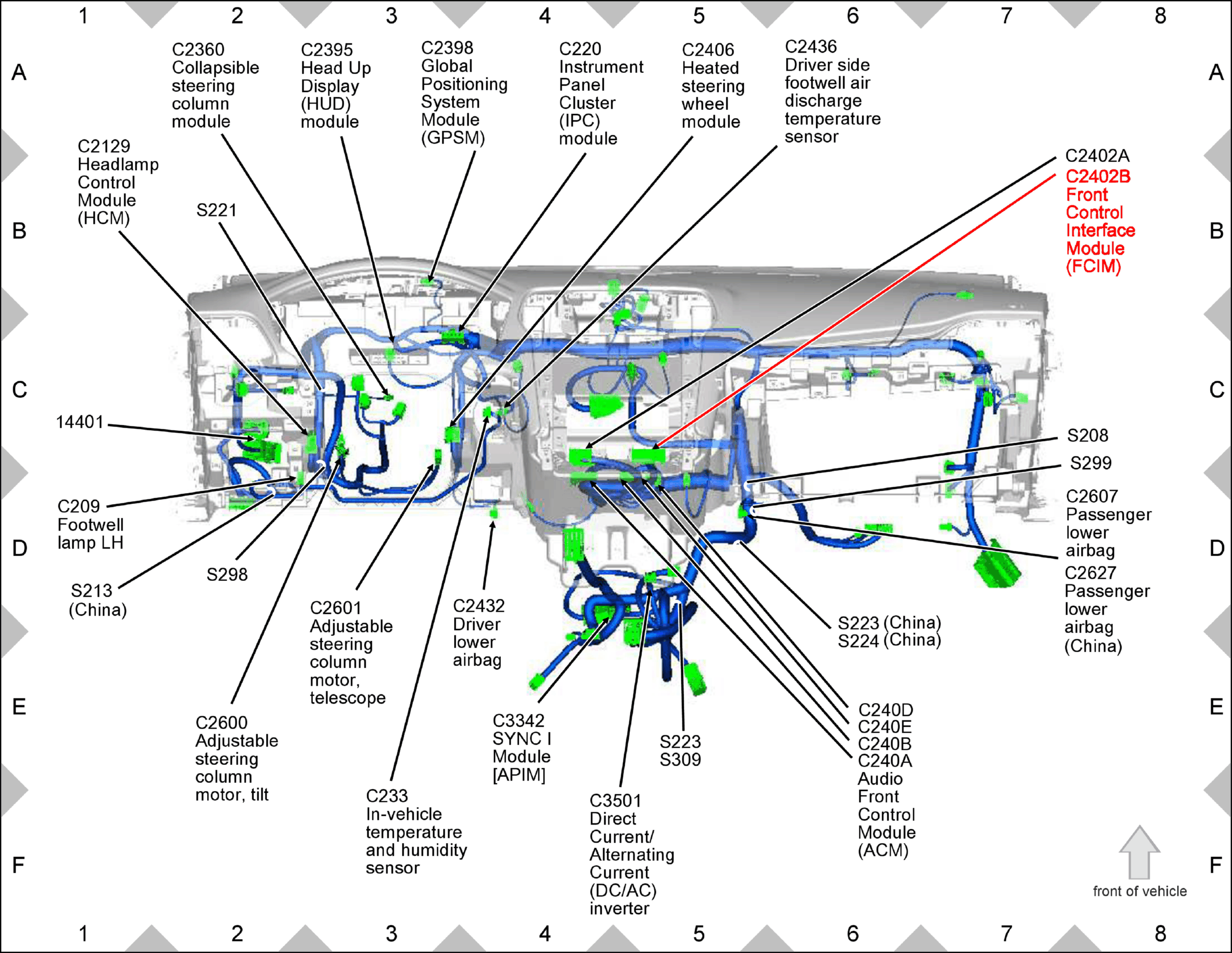

Fig 1: Front Control Interface Module (FCIM) Components Location

GFDW78516

Courtesy of FORD MOTOR COMPANY
