Front Active Park Assist Sensor RH (2.7L)

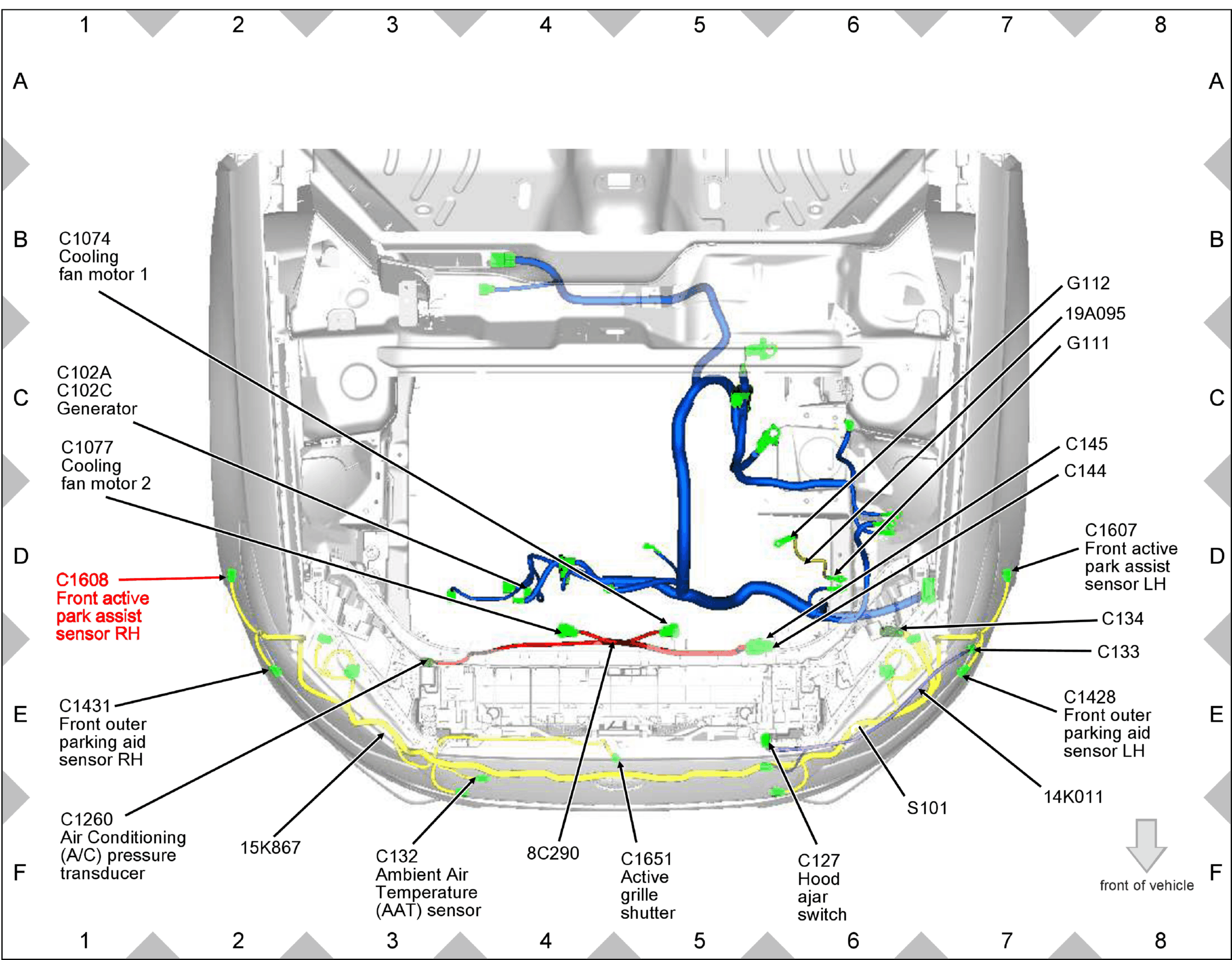

Fig 1: Front Active Park Assist Sensor RH (2.7L) Components Location

GFDW78513

Courtesy of FORD MOTOR COMPANY
