Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right

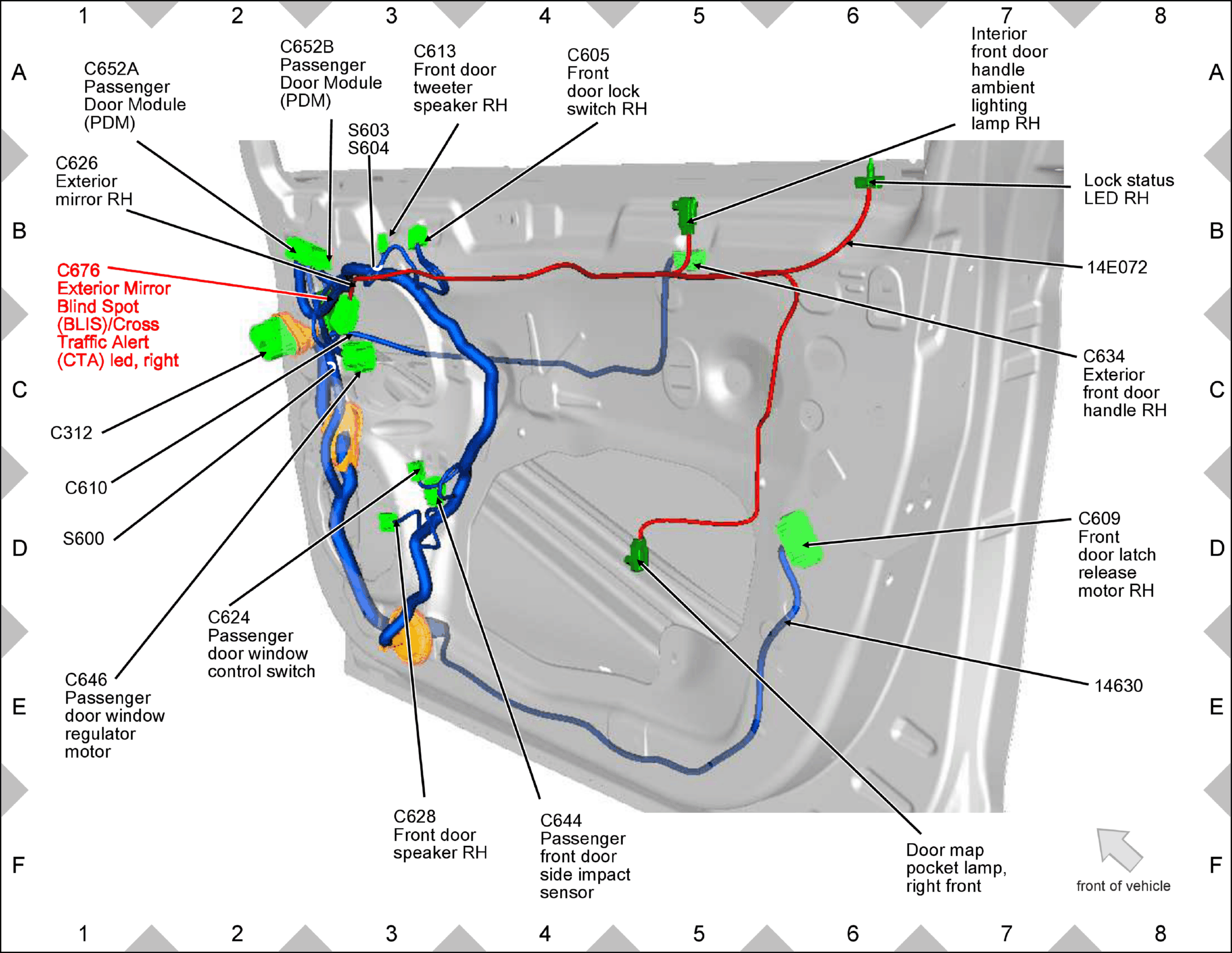

Fig 1: Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) LED, Right Components Location

GFDW78487

Courtesy of FORD MOTOR COMPANY
