Engine Oil Pressure (EOP) Sensor (2.7L)

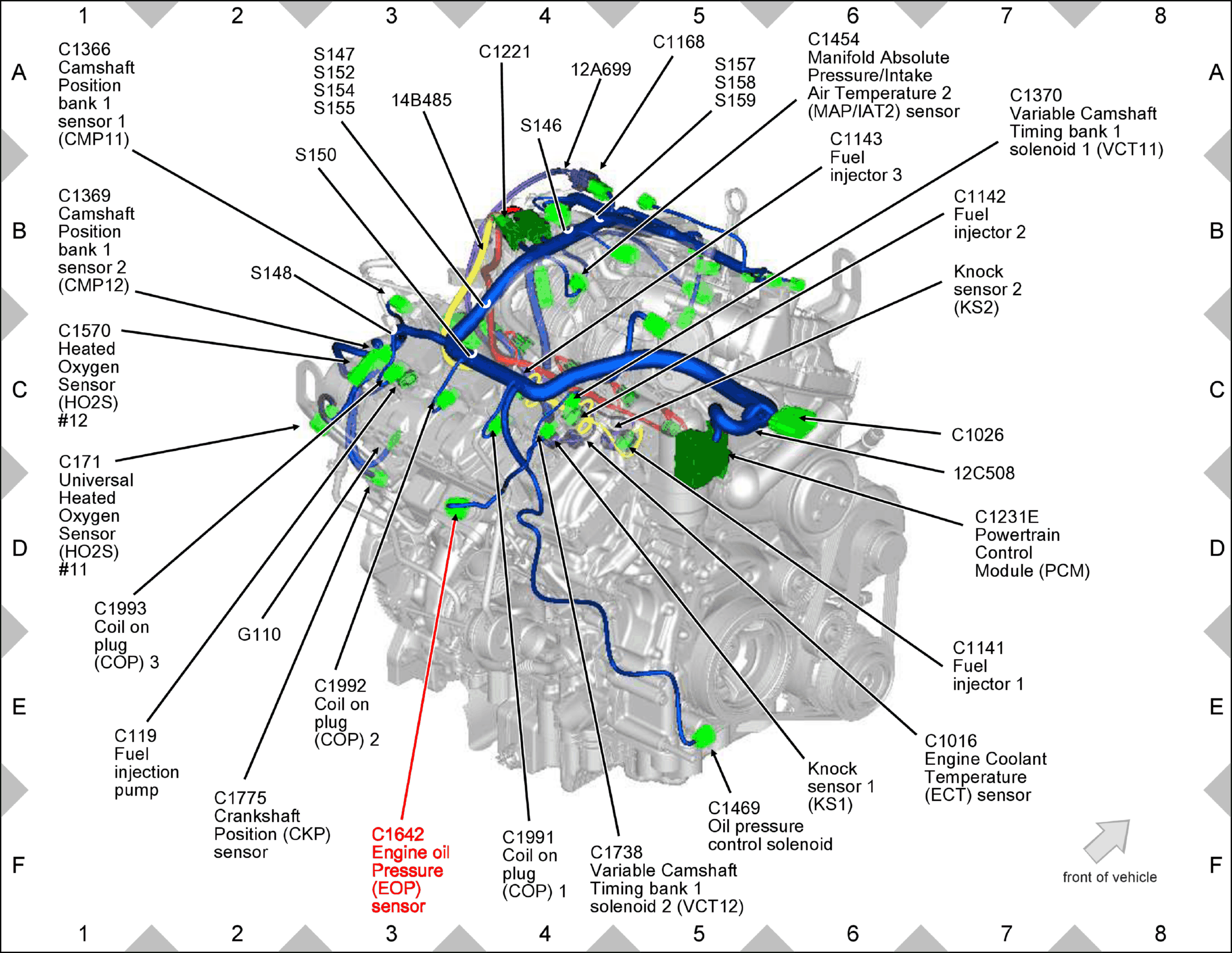

Fig 1: Engine Oil Pressure (EOP) Sensor (2.7L) Components Location

GFDW78464

Courtesy of FORD MOTOR COMPANY
