Driver Temperature Door Actuator

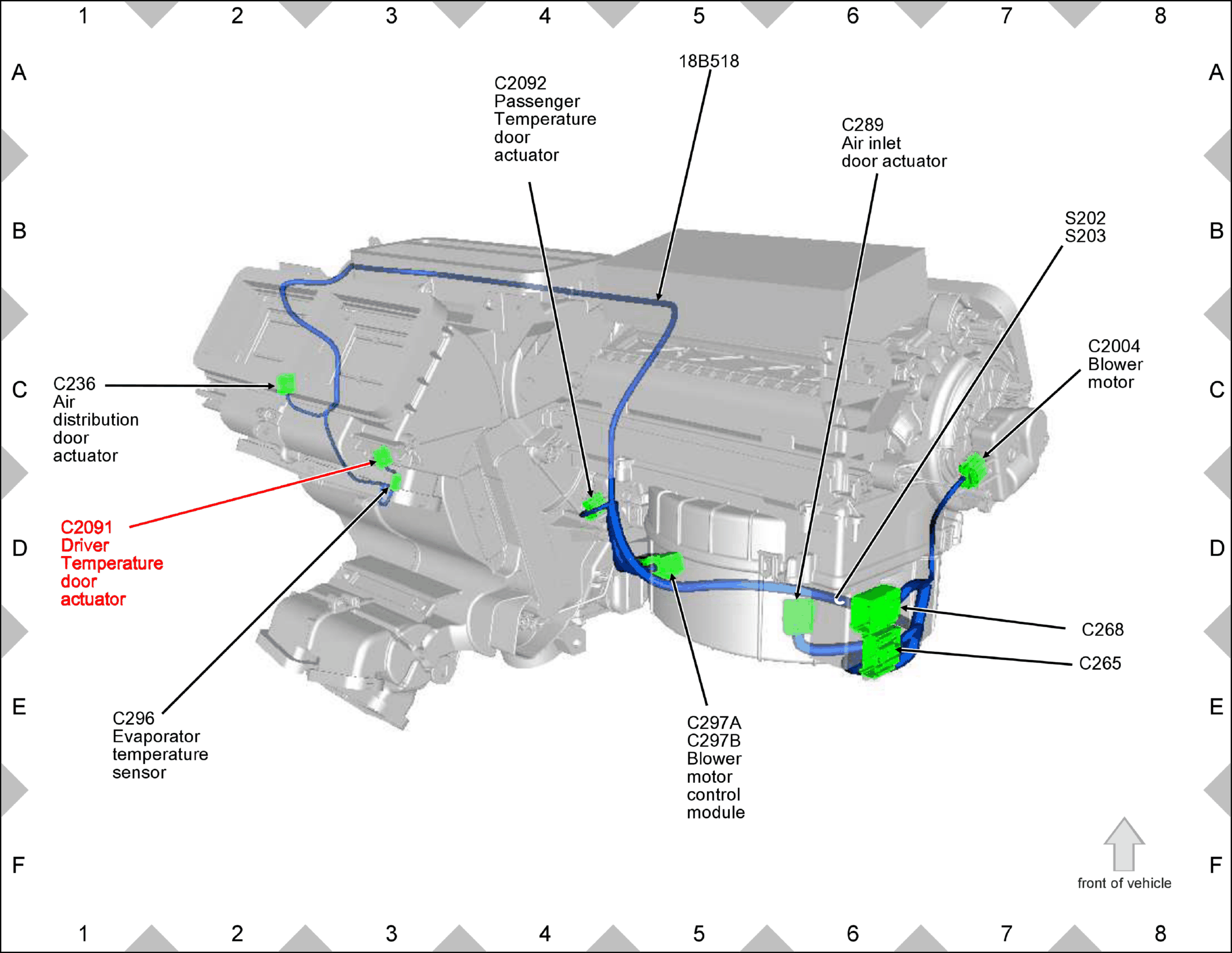

Fig 1: Driver Temperature Door Actuator Components Location

GFDW78452

Courtesy of FORD MOTOR COMPANY
