Driver Seat Horizontal Motor
Driver Seat Horizontal Motor

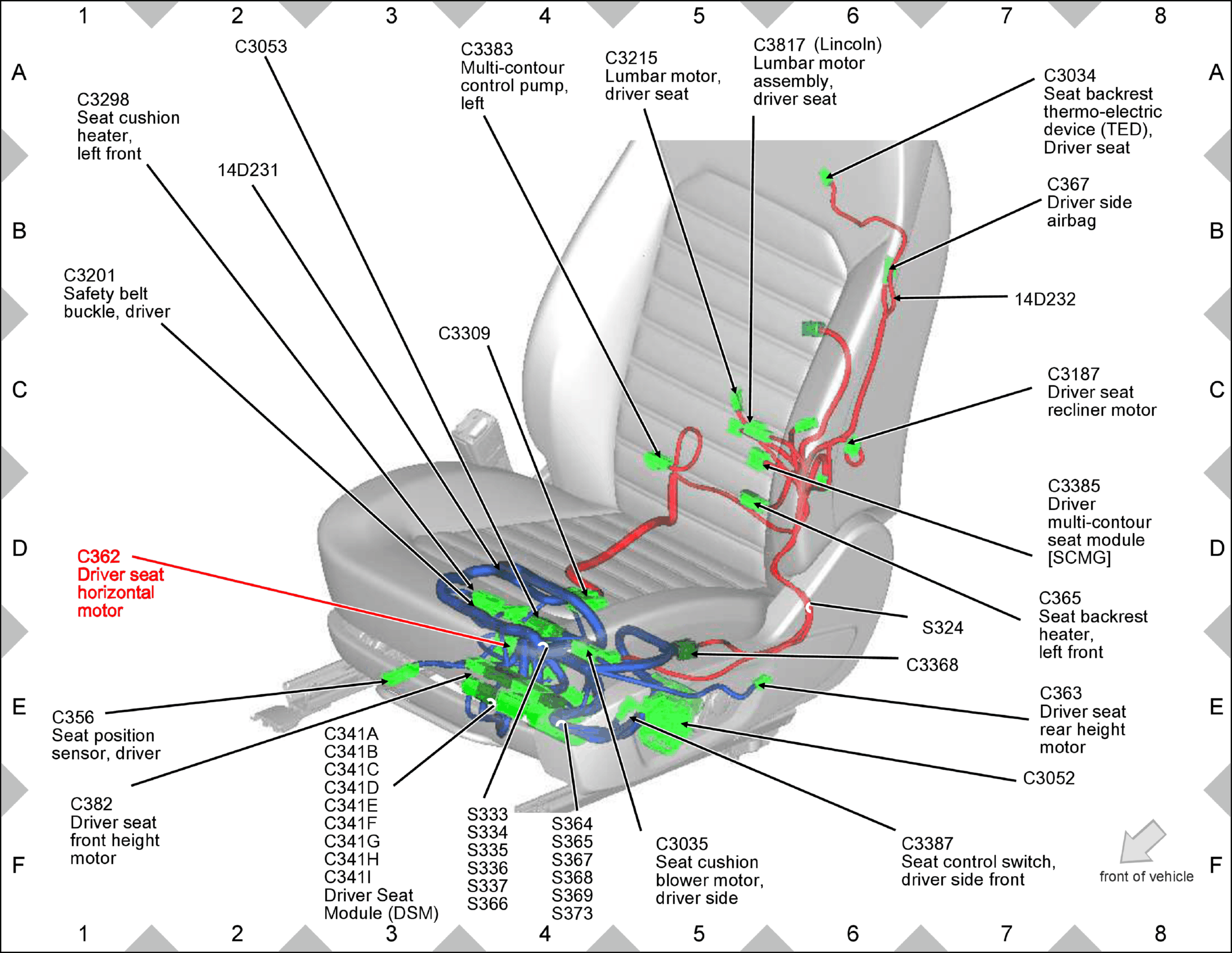

Fig 1: Driver Seat Horizontal Motor Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
