Driver Front Door Side Impact Sensor

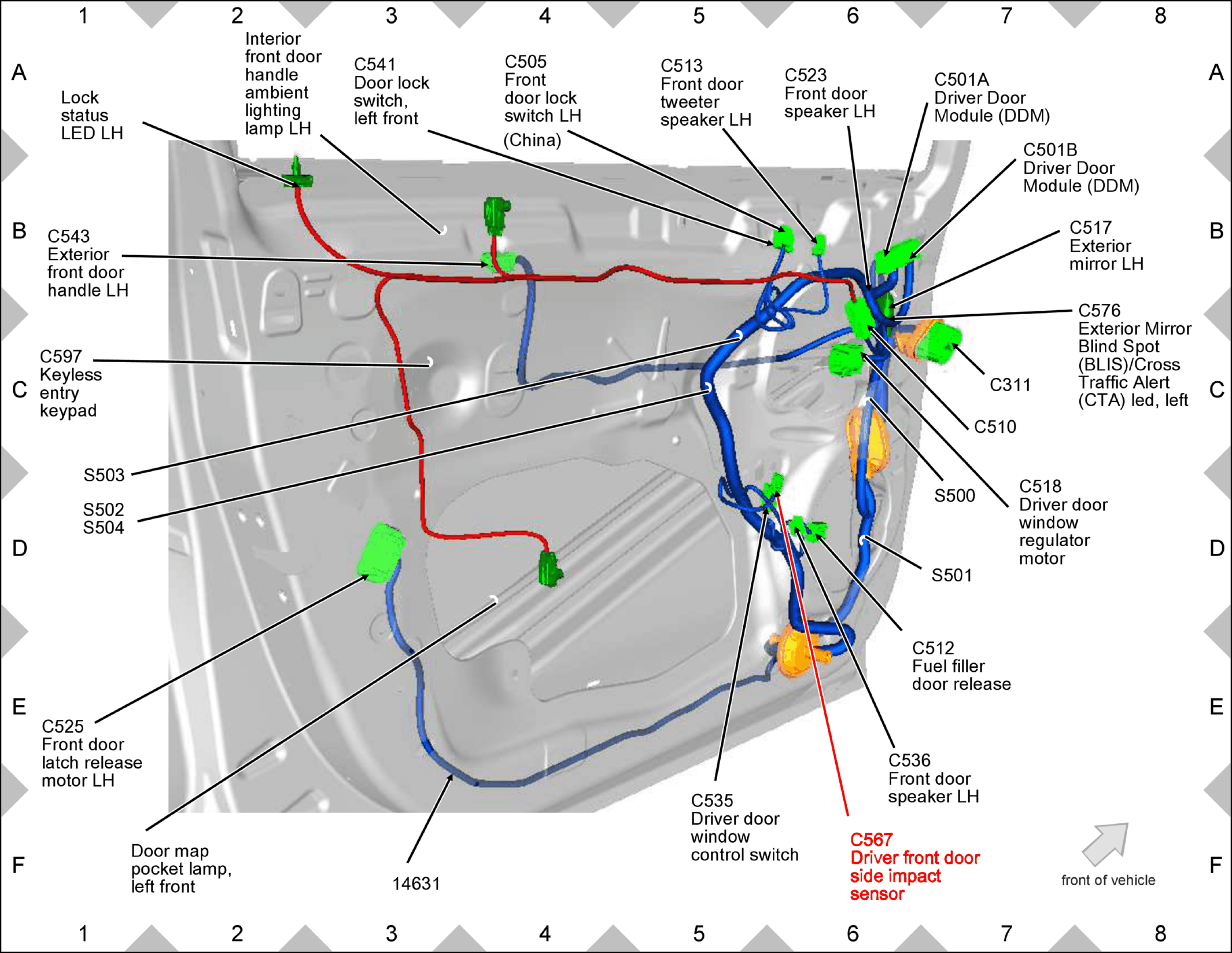

Fig 1: Driver Front Door Side Impact Sensor Components Location

GFDW78434

Courtesy of FORD MOTOR COMPANY
