Driver Door Window Regulator Motor

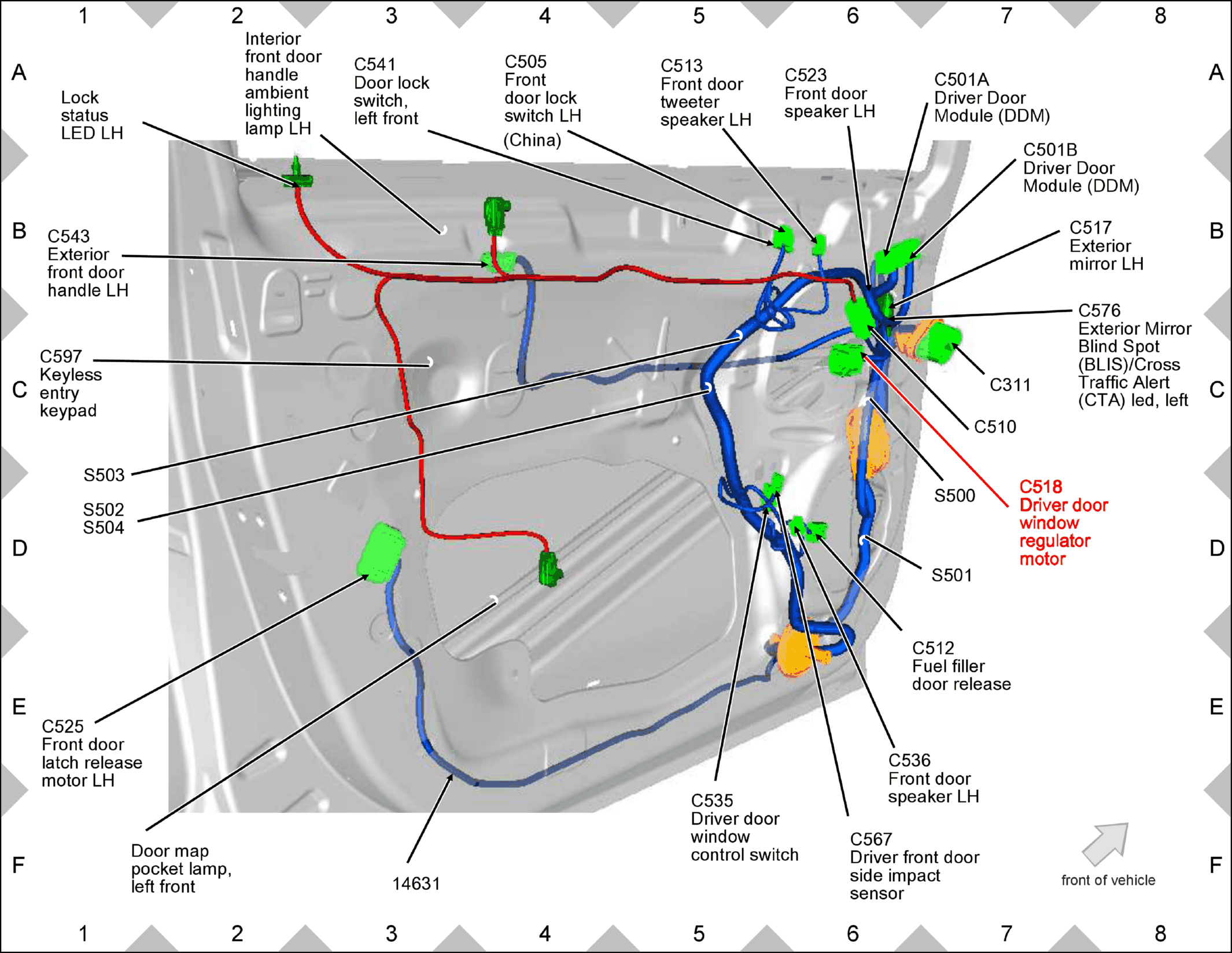

Fig 1: Driver Door Window Regulator Motor Components Location

GFDW78432

Courtesy of FORD MOTOR COMPANY
