Cylinder Head Temperature (CHT2) Sensor (2.7L)

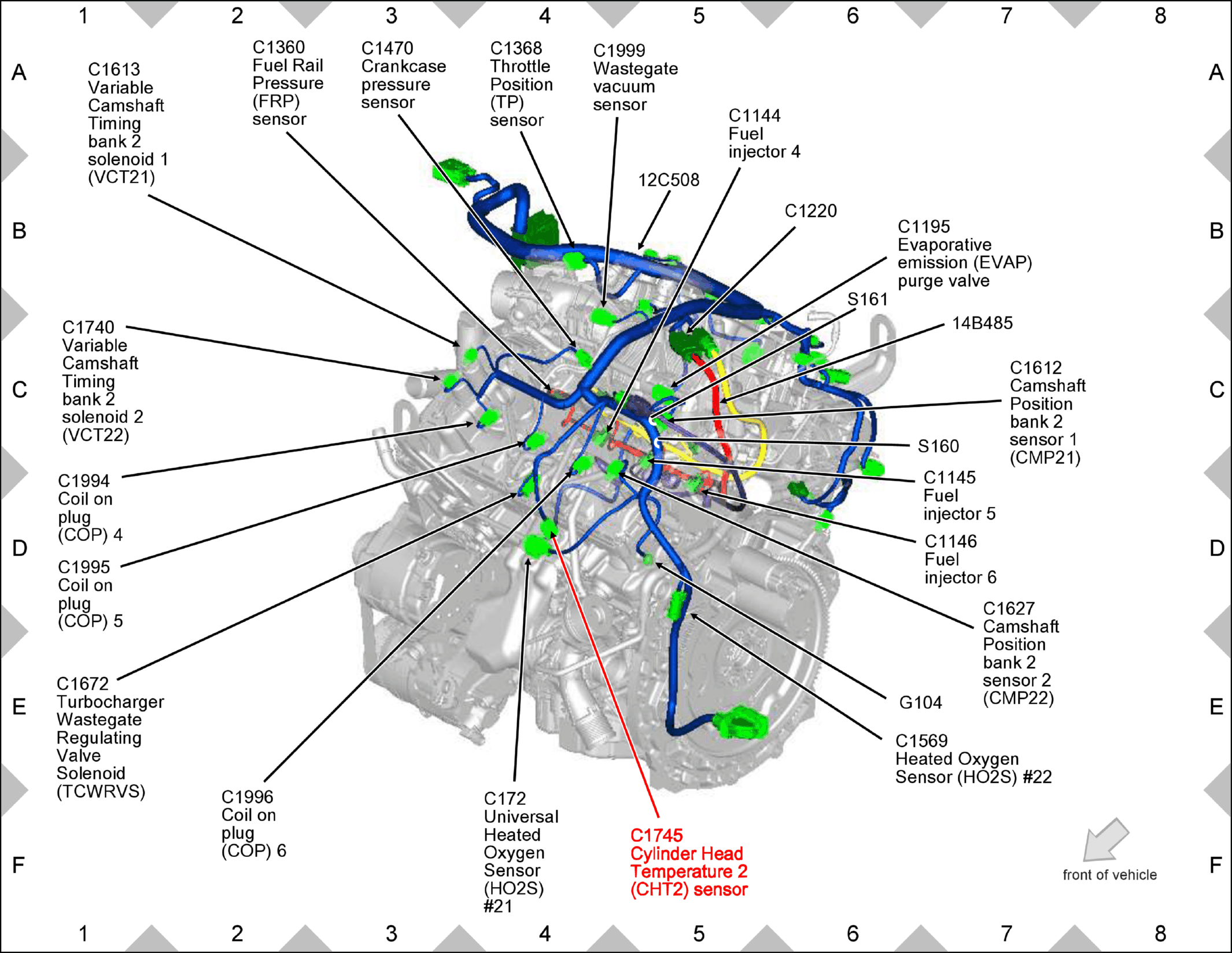

Fig 1: Cylinder Head Temperature 2 (CHT2) Sensor (2.7L) Components Location

GFDW78418

Courtesy of FORD MOTOR COMPANY
