Cylinder Head Temperature (CHT2) Sensor (1.5L)

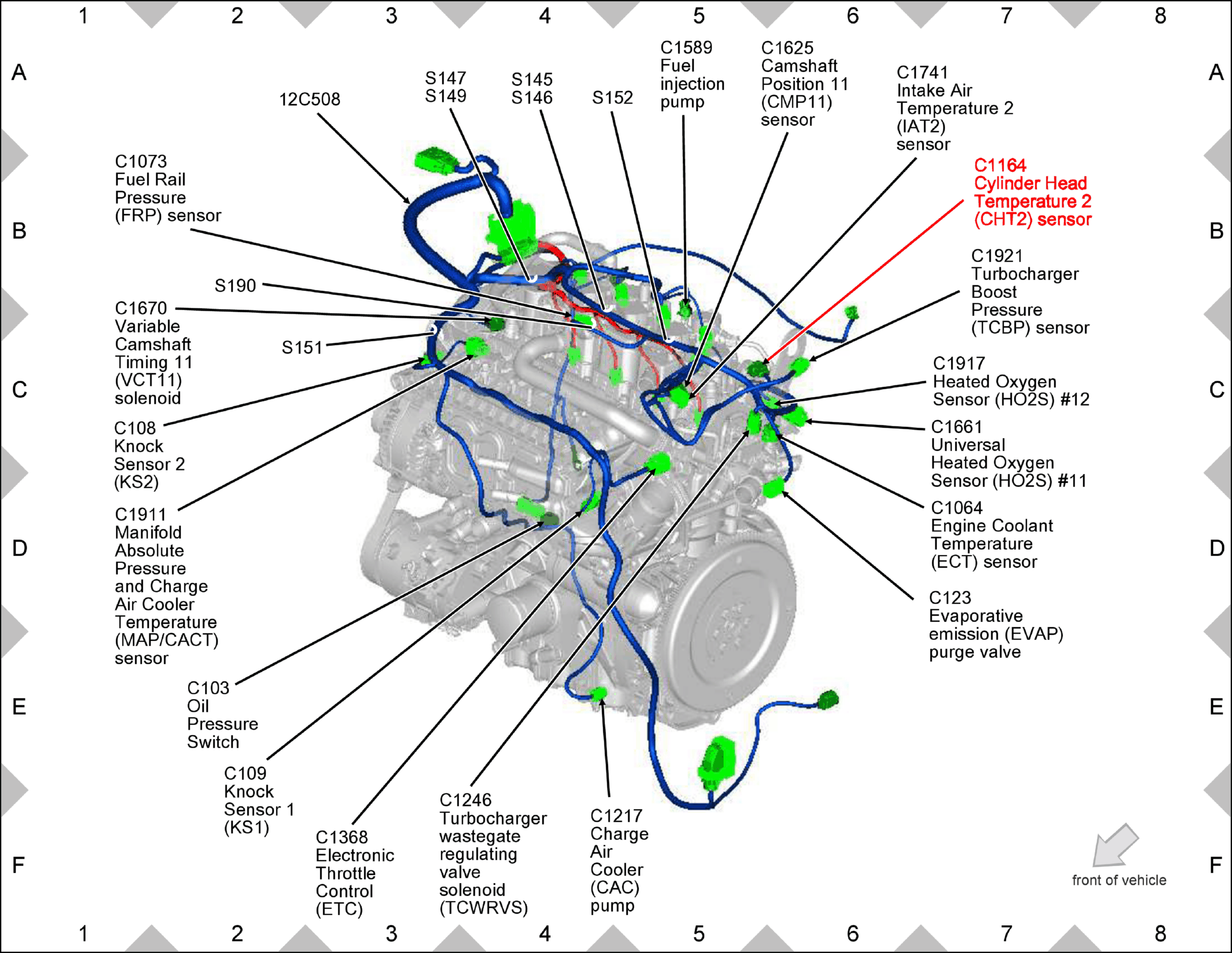

Fig 1: Cylinder Head Temperature 2 (CHT2) Sensor (1.5L) Components Location

GFDW78417

Courtesy of FORD MOTOR COMPANY
