Crankshaft Position (CKP) Sensor (2.0L)

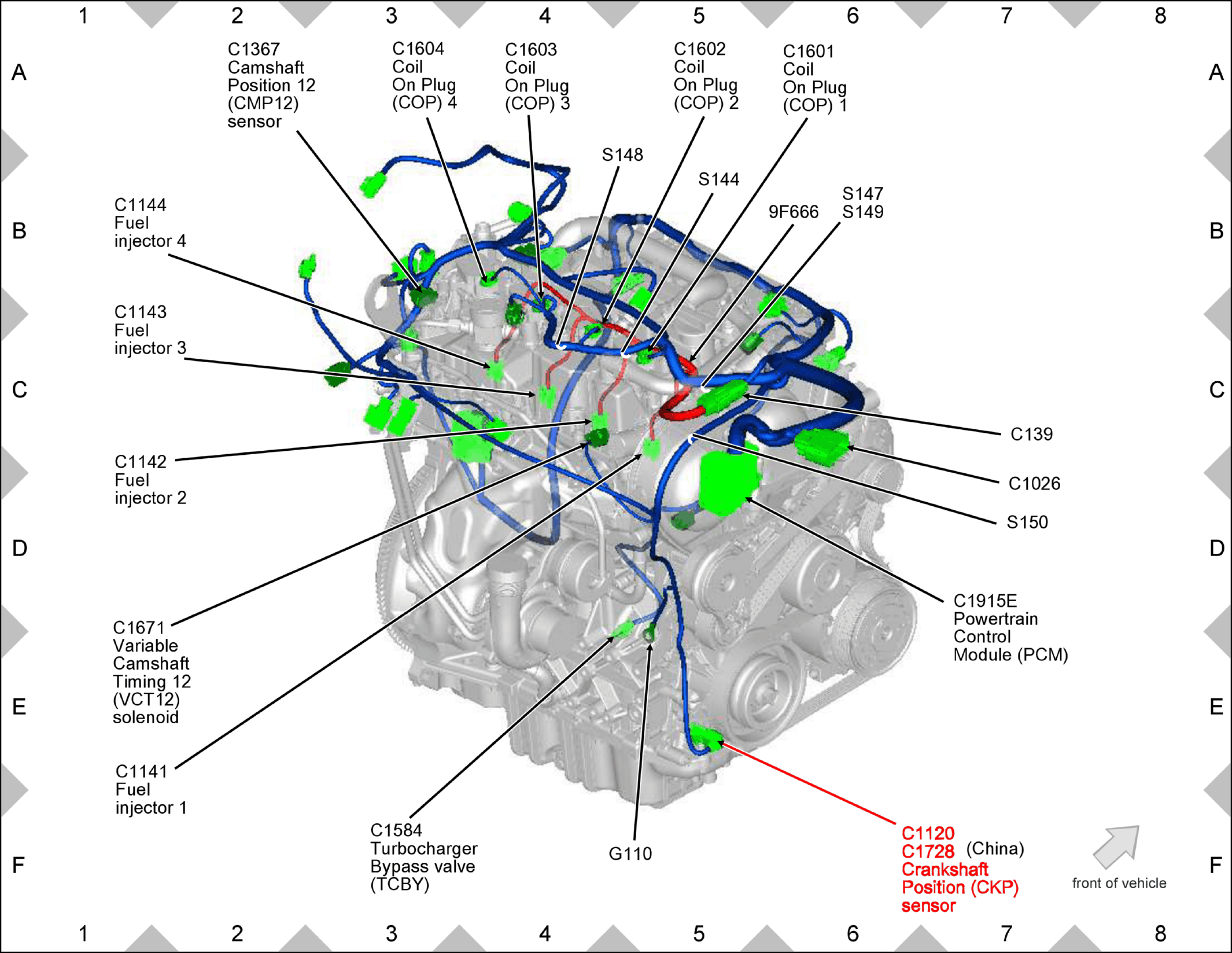

Fig 1: Crankshaft Position (CKP) Sensor (2.0L) Components Location

GFDW78411

Courtesy of FORD MOTOR COMPANY
