OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Console Front Center Ambient Led
Console Front Center Ambient Led

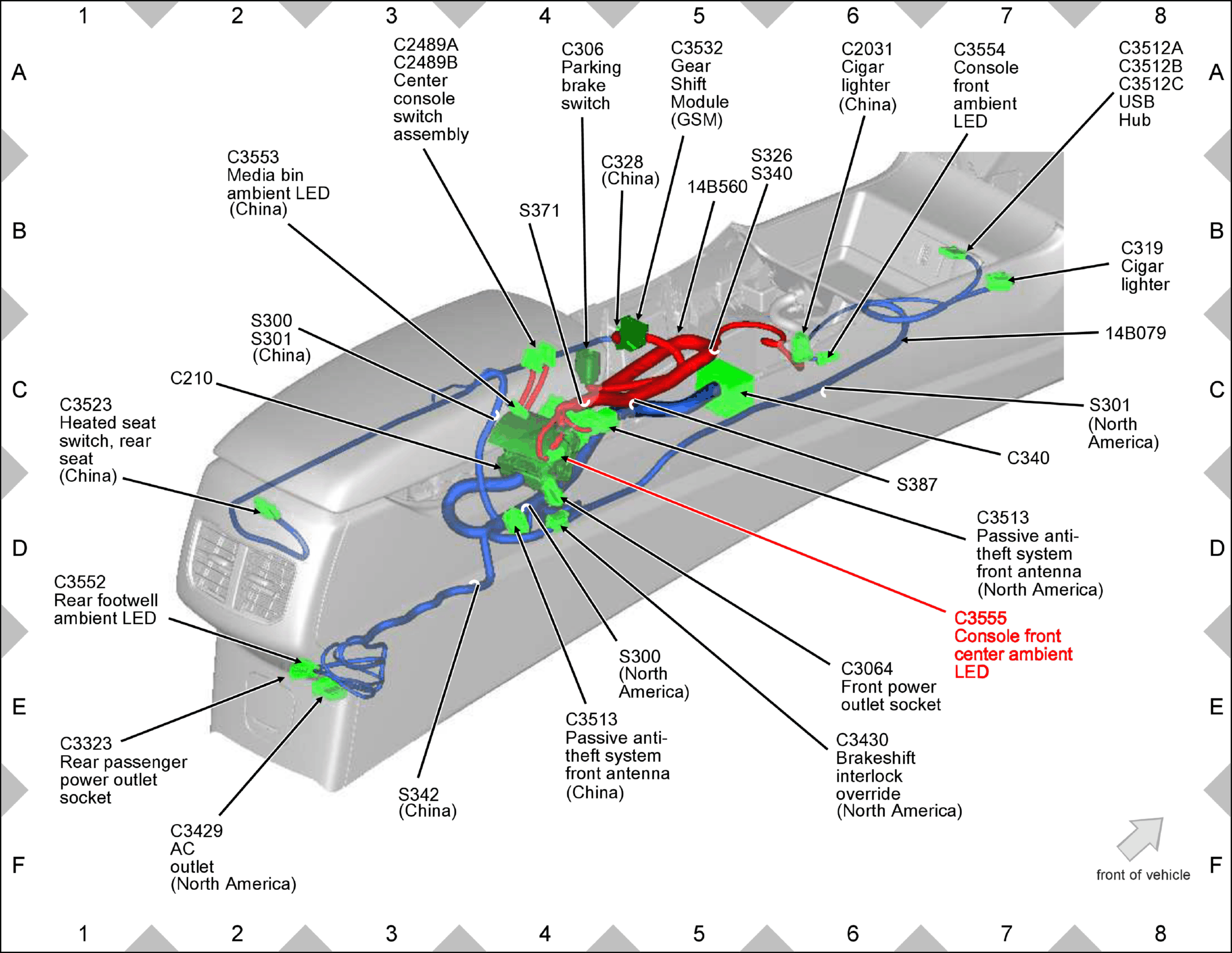

Fig 1: Console Front Center Ambient LED Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
