Console Front Ambient Led

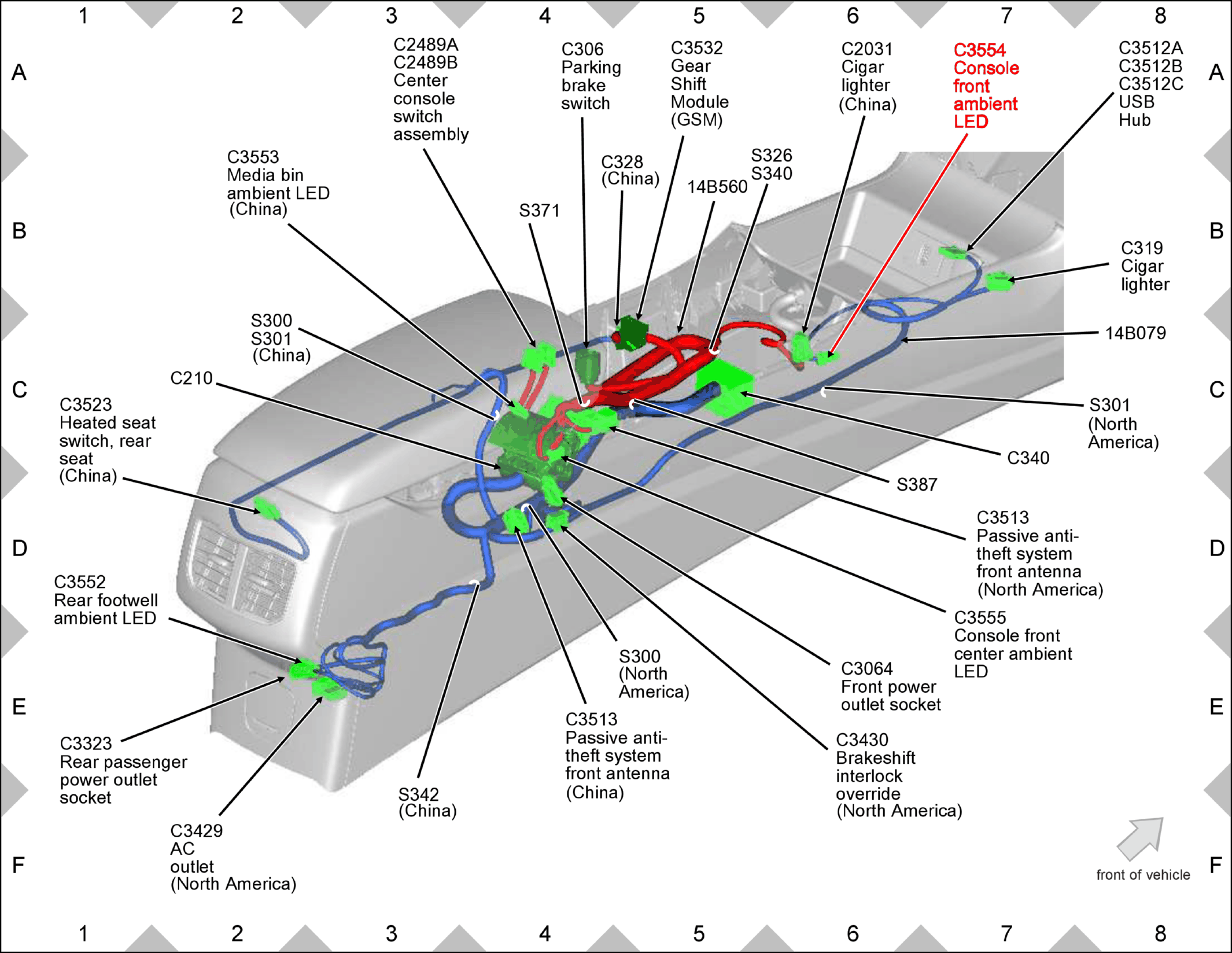

Fig 1: Console Front Ambient LED Components Location

GFDW78395

Courtesy of FORD MOTOR COMPANY
