Camshaft Position Bank 1 Sensor 2 (CMP12) (2.7L)

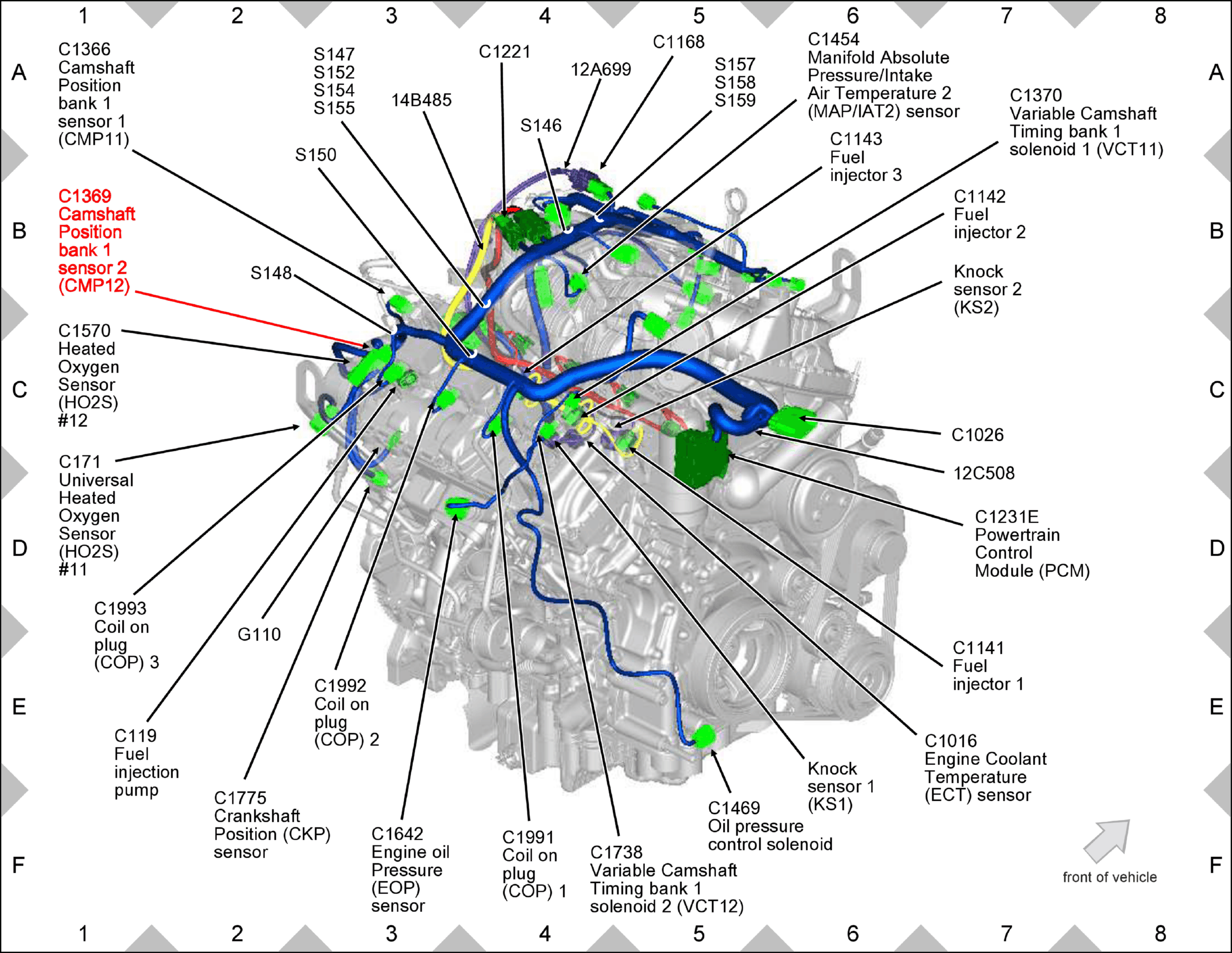

Fig 1: Camshaft Position Bank 1 Sensor 2 (CMP12) (2.7L) Components Location

GFDW78355

Courtesy of FORD MOTOR COMPANY
