OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Camshaft Position 12 (CMP12) Sensor (1.5L)
Camshaft Position 12 (CMP12) Sensor (1.5L)

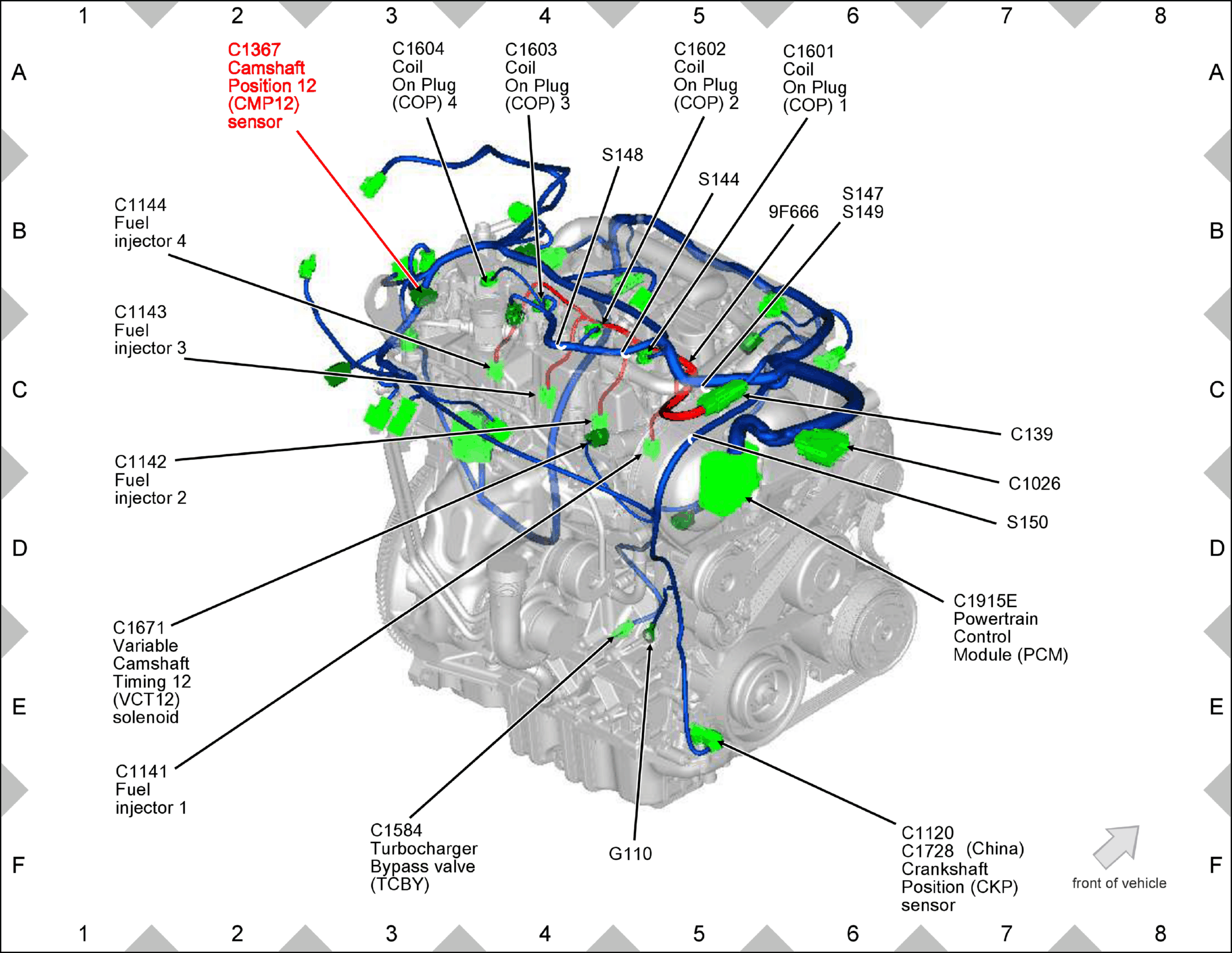

Fig 1: Camshaft Position 12 (CMP12) Sensor (1.5L) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
