OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Blower Motor Control Module
Blower Motor Control Module

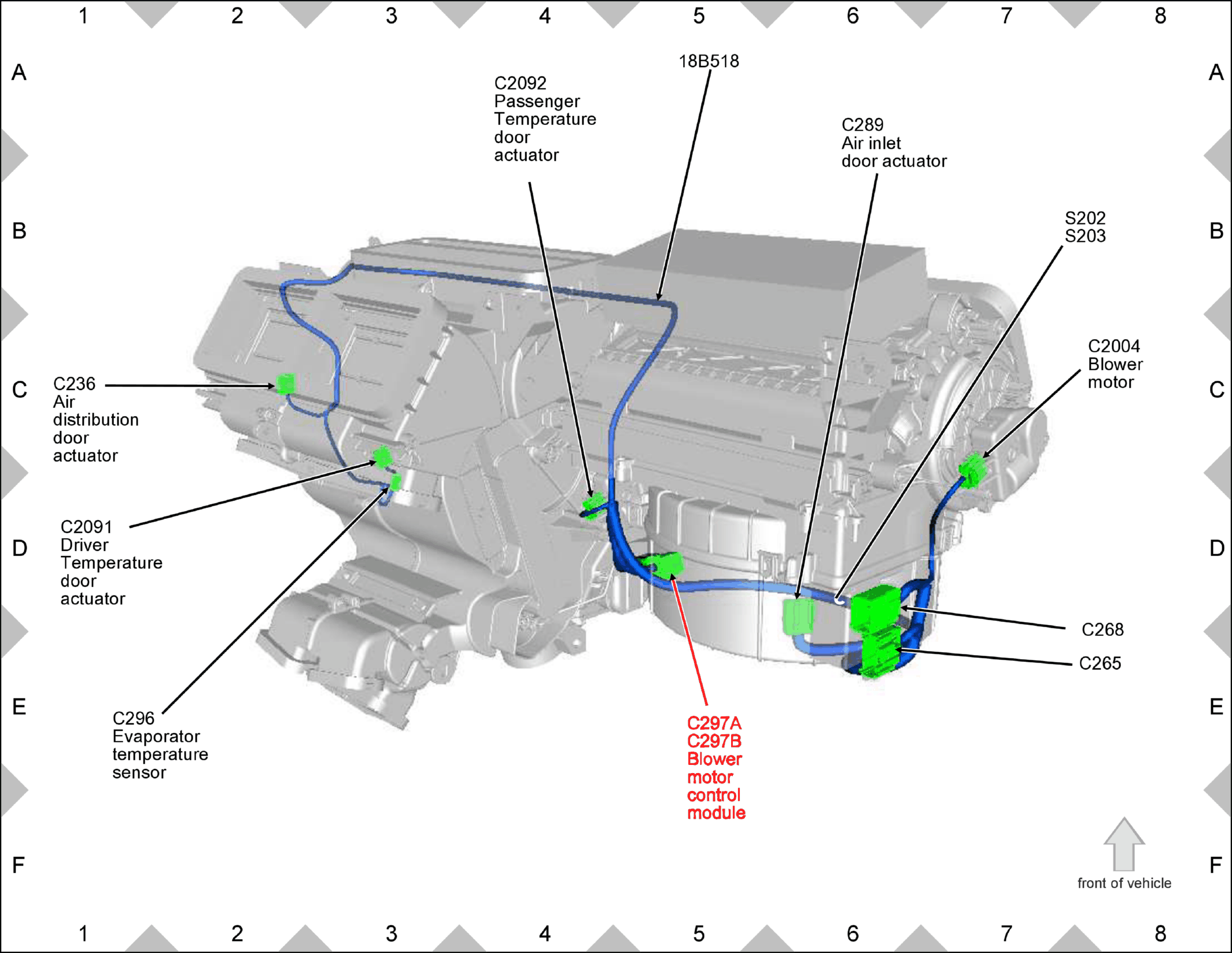

Fig 1: Blower Motor Control Module Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
