Audio Digital Signal Processing (DSP) Module

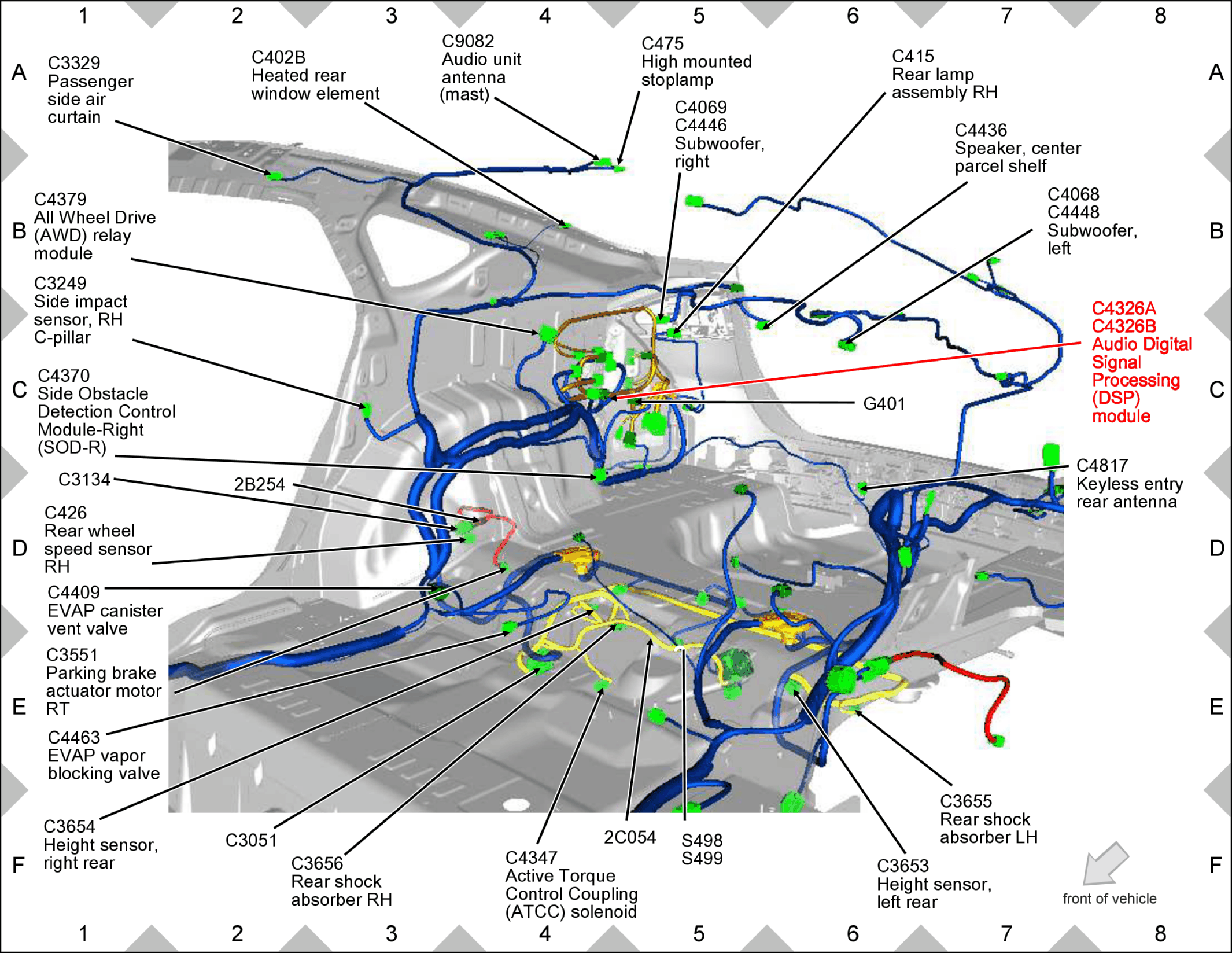

Fig 1: Audio Digital Signal Processing (DSP) Module Components Location

GFDW78314

Courtesy of FORD MOTOR COMPANY
