Air Conditioning (A/C) Compressor Control Solenoid (1.5L)
Air Conditioning (A/C) Compressor Control Solenoid (1.5L)

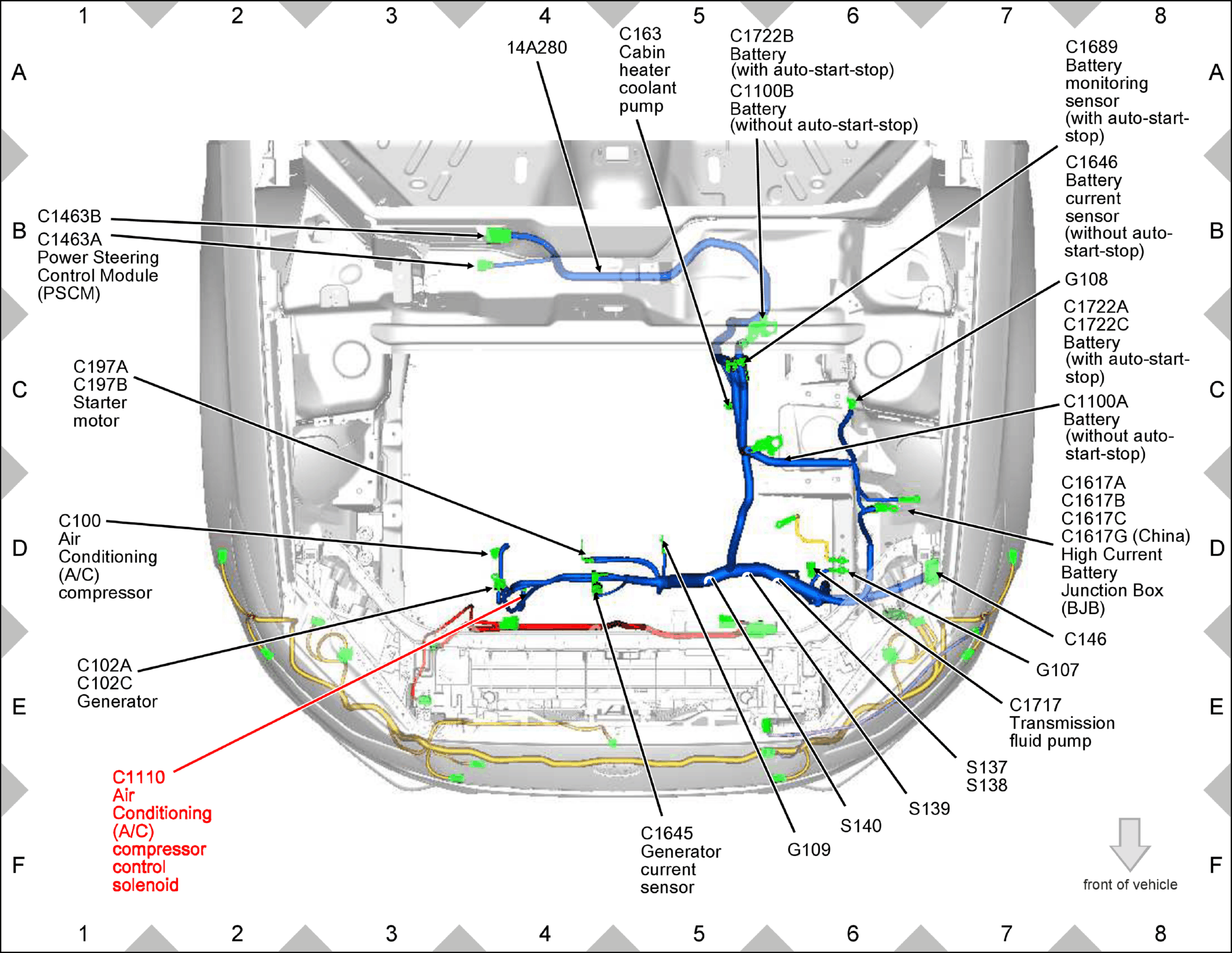

Fig 1: Air Conditioning (A/C) Compressor Control Solenoid (1.5L) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
