OEM Component Harness Location Charts - Fusion (Except Hybrid)
>>
Component Location Charts
>>
Active Noise Control Microphone-1
Active Noise Control Microphone-1

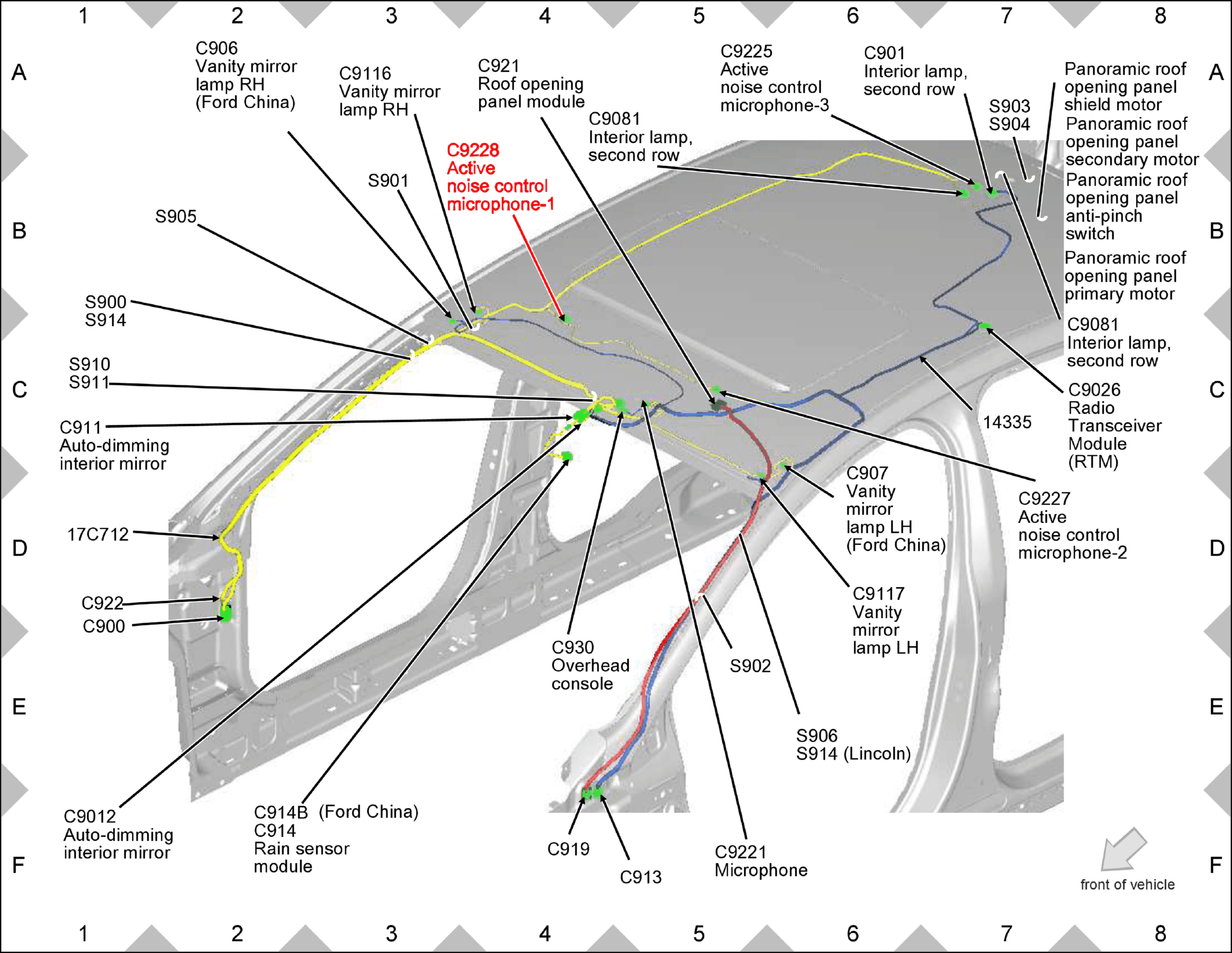

Fig 1: Active Noise Control Microphone-1 Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
