Heater Hoses: Removal
WARNING: This page is about a different variant/trim than selected.
All vehicles
- Refer to: Air Cleaner .
- Refer to: Air Cleaner Outlet Pipe .
- Drain the engine cooling system. Refer to: Cooling System Draining, Filling and Bleeding .
- Drain the electric powertrain cooling system. Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Transmission Control Module (TCM) .

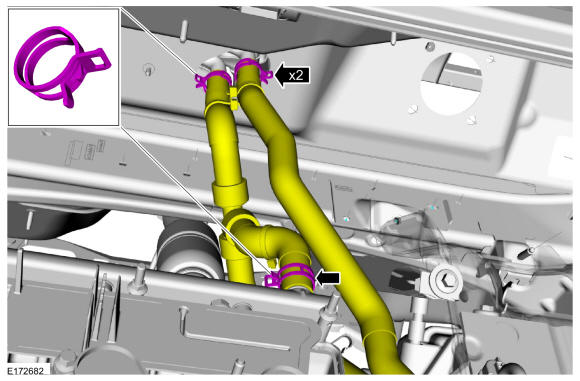

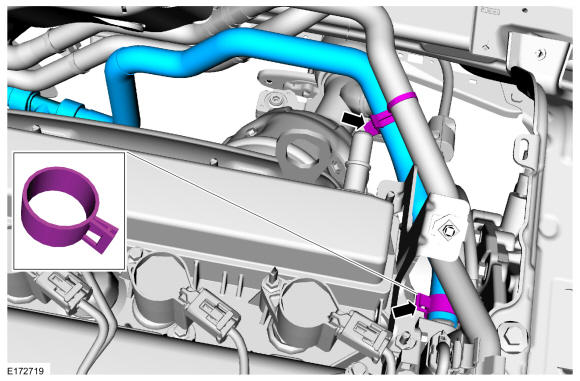

- Use the General Equipment: Hose Clamp Remover/Installer

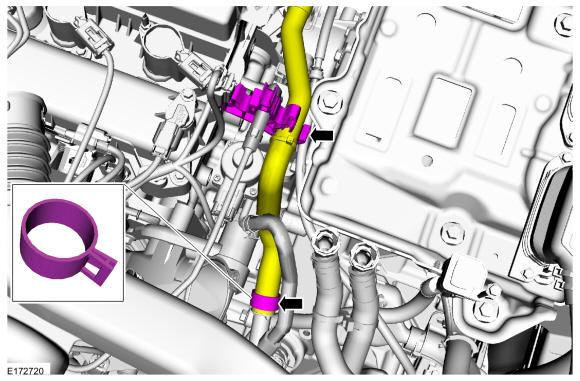

- Use the General Equipment: Hose Clamp Remover/Installer

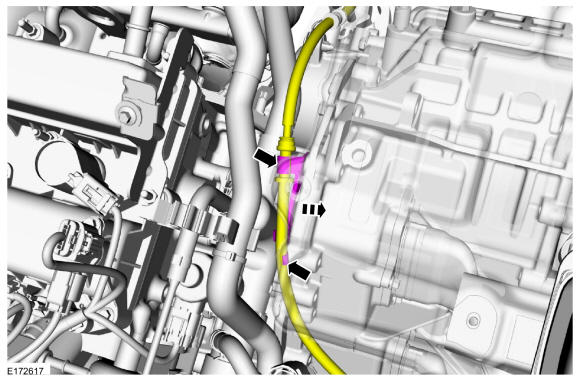

- Use the General Equipment: Hose Clamp Remover/Installer
PHEV vehicles

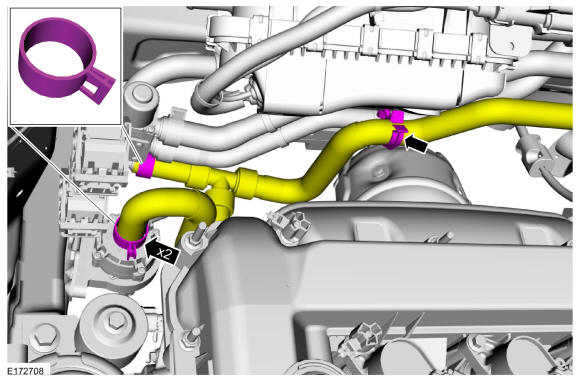

- Use the General Equipment: Hose Clamp Remover/Installer

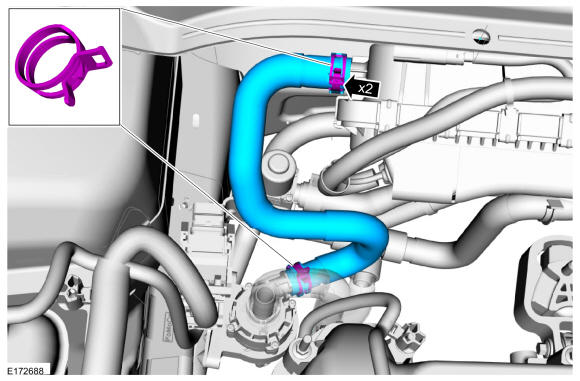

- Use the General Equipment: Hose Clamp Remover/Installer

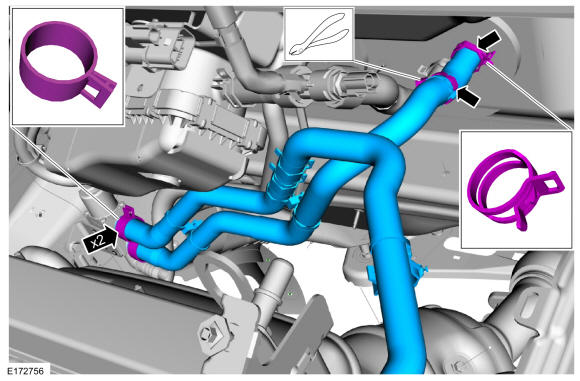

- Use the General Equipment: Hose Clamp Remover/Installer

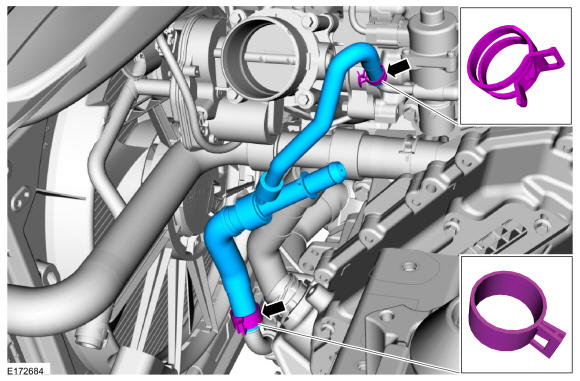

- Use the General Equipment: Hose Clamp Remover/Installer

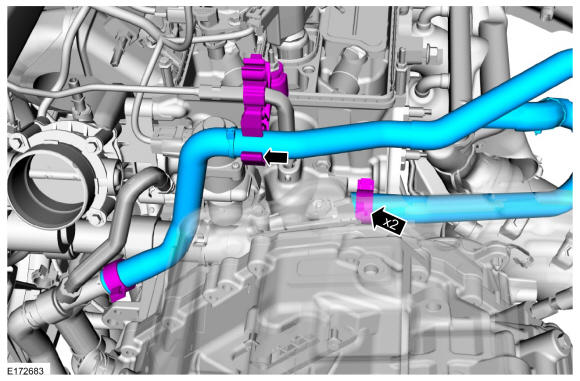

- Use the General Equipment: Hose Clamp Remover/Installer
- Use the General Equipment: Hose Clamp Remover/Installer
FHEV vehicles
