Degas Bottle: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions .

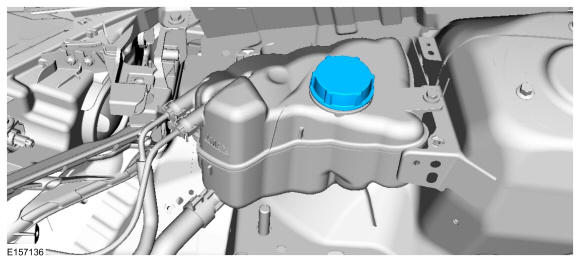

  2. GFD198090Courtesy of FORD MOTOR COMPANY
  3. Use the General Equipment: Hose Clamp(s)

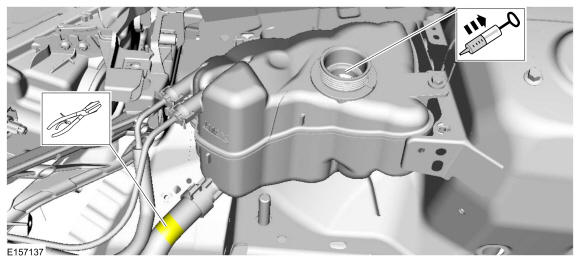

    GFD198091Courtesy of FORD MOTOR COMPANY
  4. Torque: 80 lb.in (9 Nm)

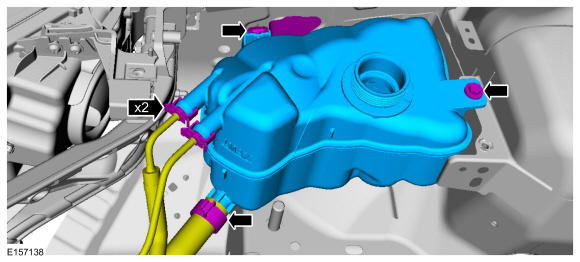

    GFD198092Courtesy of FORD MOTOR COMPANY
