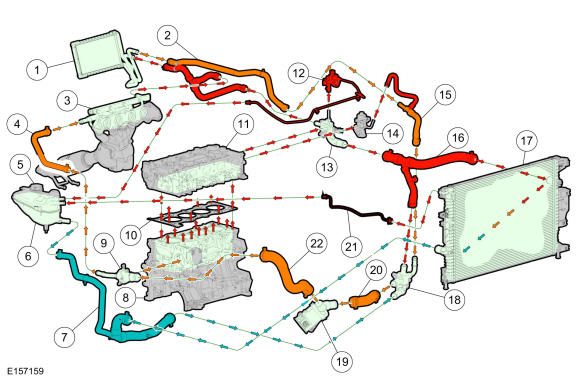

Exploded View Of Engine Cooling System (FHEV)
WARNING: This page is about a different variant/trim than selected.
FHEV
| Item | Description |
|---|---|
| 1 | Heater core |
| 2 | Heater hose assembly |
| 3 | Exhaust manifold and converter assembly |
| 4 | Cylinder block coolant pump hole cover assembly outlet hose |
| 5 | Pressure relief cap |
| 6 | Degas bottle |
| 7 | Lower radiator hose |
| 8 | Cylinder block |
| 9 | Cylinder block coolant pump hole cover assembly |
| 10 | Cylinder head gasket |
| 11 | Cylinder head |
| 12 | Coolant outlet connector adapter assembly-to-degas bottle hose and connector |
| 13 | Coolant outlet connector adapter assembly |
| 14 | Exhaust gas recirculation (EGR) valve |
| 15 | Heater outlet hose assembly |
| 16 | Upper radiator hose |
| 17 | Radiator |
| 18 | Thermostat housing |
| 19 | Coolant pump |
| 20 | Coolant pump inlet hose |
| 21 | Radiator-to-degas bottle hose |
| 22 | Coolant pump outlet hose |
