Parking Brake Switch: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Open the floor console stowage bin lid.
    GFD197436Courtesy of FORD MOTOR COMPANY
  2. On both sides. Detach the clips and remove the floor console upper side finish panels.
    GFD197437Courtesy of FORD MOTOR COMPANY
  3. Detach the clips and remove the instrument panel center finish panel.
    GFD197438Courtesy of FORD MOTOR COMPANY
  4. Remove the screws, detach the clips and remove the upper floor console finish panel.

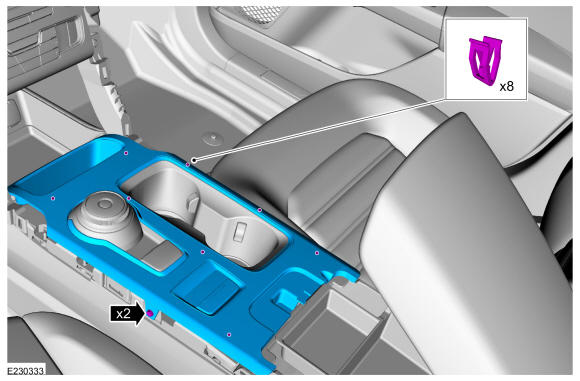

    GFD197439Courtesy of FORD MOTOR COMPANY
    1. Remove the screws.
    2. Detach the clips and position the floor console upper support to access the parking brake switch.
    3. Disconnect the electrical connector.
    4. Remove the parking brake switch.

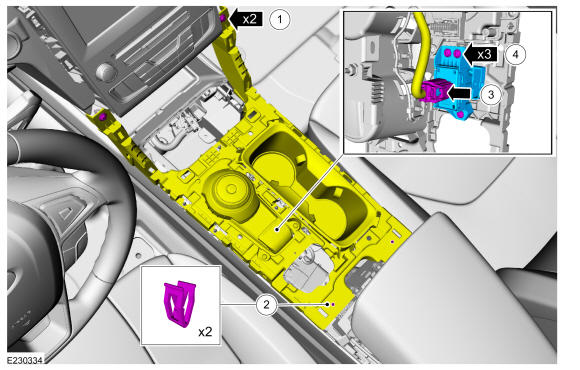

    GFD197440Courtesy of FORD MOTOR COMPANY
