Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
- Refer to: Air Cleaner Outlet Pipe .

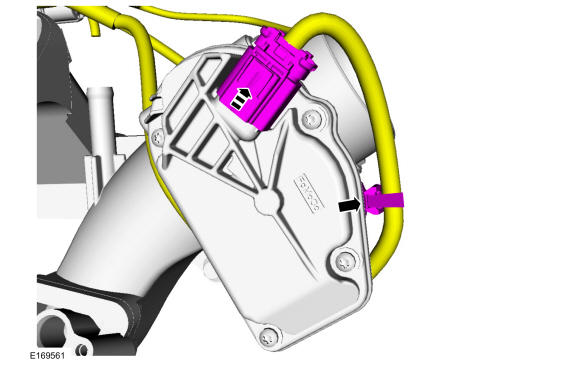

- When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.
