Throttle Body: Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of FORD MOTOR COMPANY

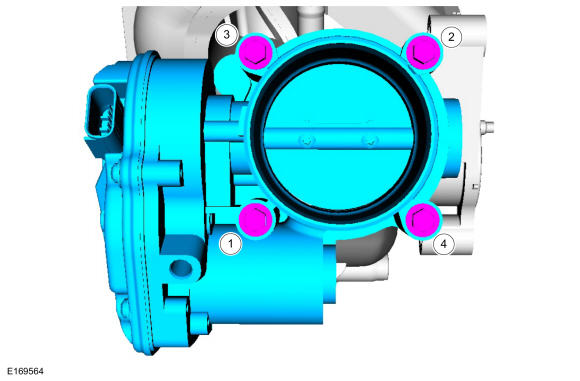

Tighten in sequence displayed.
Torque: 89 lb.in (10 Nm)

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY

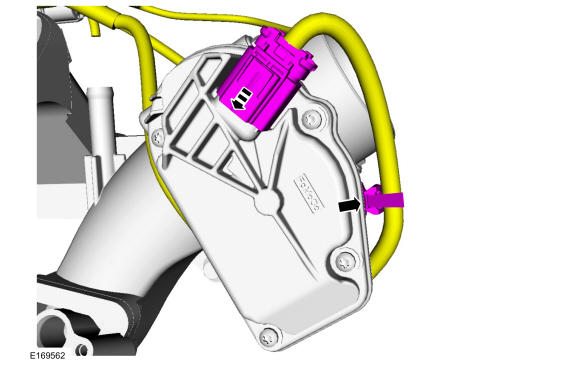

When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

Courtesy of FORD MOTOR COMPANY
Refer to: Air Cleaner Outlet Pipe .
