Fuel Charging and Controls - Component Location

WARNING: This page is about a different variant/trim than selected.

2.0L Hybrid

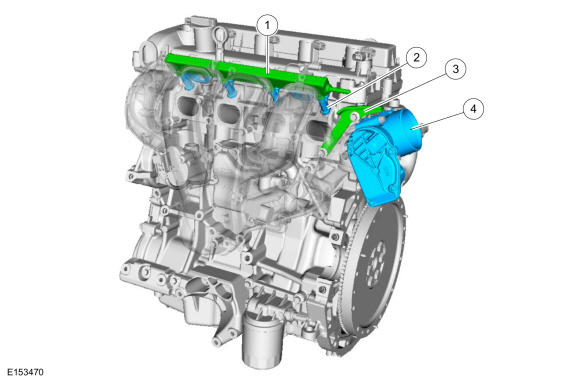

GFD198115Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel rail
2 Fuel injector
3 Crash bracket
4 Throttle Body (TB)

FPDM

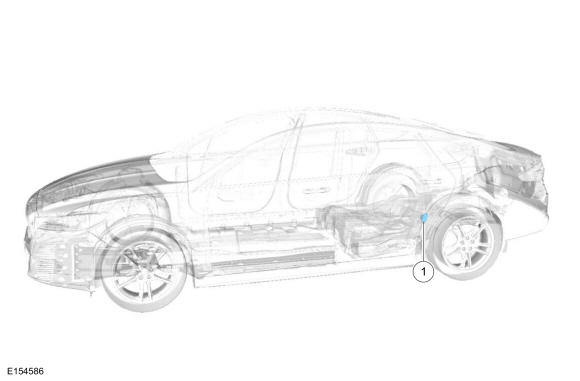

GFD198116Courtesy of FORD MOTOR COMPANY
Item Description
1 FPDM
