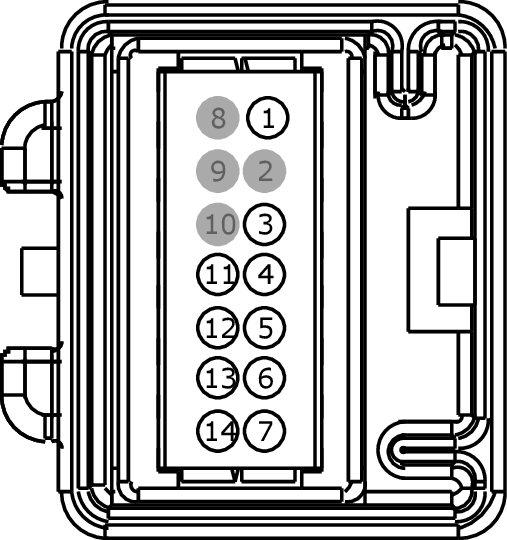

Connector End View (C9012) - AUTO-DIMMING INTERIOR MIRROR
Connector: C9012
Description
AUTO-DIMMING INTERIOR MIRROR
Color
Harness
17C712
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP36 (BU-BN) | 20 | FUSE - 36 OR CIRCUIT BREAKER | Fusion |
| 1 | CBP36 (YE-GY) | 20 | FUSE - 36 OR CIRCUIT BREAKER | MKZ |
| 2 | * | * | Not Used | |
| 3 | VDB27 (VT-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH | Fusion |
| 3 | VDB27 (GN-VT) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH | MKZ |
| 4 | VDB28 (GY-VT) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW | Fusion |
| 4 | VDB28 (VT-GY) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW | MKZ |
| 5 | LRD12 (BU-BN) | 22 | CTRL MOD. - ELECTROCHROMIC MIRROR + | Fusion |
| 5 | LRD12 (BU-GY) | 22 | CTRL MOD. - ELECTROCHROMIC MIRROR + | MKZ |
| 6 | RRD12 (BN) | 22 | CTRL MOD. - ELECTROCHROMIC MIRROR - | |
| 7 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CRD19 (VT-WH) | 22 | MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE + | |
| 12 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 13 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 14 | RRD19 (BN-VT) | 22 | MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE - | Fusion |
| 14 | RRD19 (VT-WH) | 22 | MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE - | MKZ |
