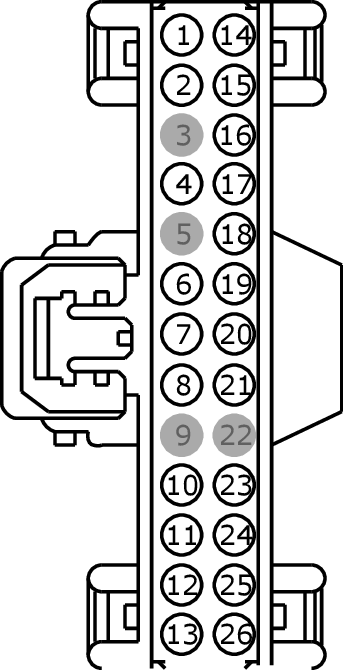

Connector End View (C4821B) - AUDIO FRONT CONTROL MODULE (ACM)
Connector: C4821B
Description
AUDIO FRONT CONTROL MODULE (ACM)
Color
Harness
14B644
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME99 (VT-OG) | 22 | MICROPHONE - AMBIENT NOISE 2 + | |
| 2 | VME57 (YE-VT) | 22 | MICROPHONE - AMBIENT NOISE + | |
| 3 | * | * | Not Used | |
| 4 | VME22 (VT-GN) | 22 | CTRL MOD. - AUDIO HEAD UNIT# SUBWOOFER 1 + | |
| 5 | * | * | Not Used | |
| 6 | VME90 (GY-BU) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) | |
| 7 | VMEA0 (BU-GN) | 22 | MICROPHONE - AMBIENT NOISE 3 + | |
| 8 | VME80 (VT-OG) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 9 | * | * | Not Used | |
| 10 | VMEA9 (BU-GY) | 20 | CTRL MOD. - REMOTE CD # AUDIO LEFT + | |
| 11 | VMEB0 (GN-WH) | 20 | CTRL MOD. - REMOTE CD # AUDIO RIGHT + | |
| 12 | VME52 (BU) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + | |
| 13 | VME53 (VT-GN) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + | |
| 14 | RME99 (YE-GY) | 22 | MICROPHONE - AMBIENT NOISE 2 - | |
| 15 | RME57 (BU-BN) | 22 | MICROPHONE - AMBIENT NOISE - | |
| 16 | DME22 (*) | 20 | CTRL MOD. - AUDIO HEAD UNIT# SUBWOOFER 1 D | |
| 17 | RME22 (GN-WH) | 22 | CTRL MOD. - AUDIO HEAD UNIT# SUBWOOFER 1 - | |
| 18 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 1 | |
| 18 | SME56 (BN) | 20 | CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 2 | |
| 19 | VME91 (WH-BN) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) | |
| 20 | RMEA0 (WH-OG) | 22 | MICROPHONE - AMBIENT NOISE 3 - | |
| 21 | RME80 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 22 | * | * | Not Used | |
| 23 | RMEA9 (VT-BN) | 20 | CTRL MOD. - REMOTE CD # AUDIO LEFT - | |
| 24 | RMEB0 (WH-BN) | 20 | CTRL MOD. - REMOTE CD # AUDIO RIGHT - | |
| 25 | RME52 (GY-OG) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - | |
| 26 | RME53 (BN-WH) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - |
