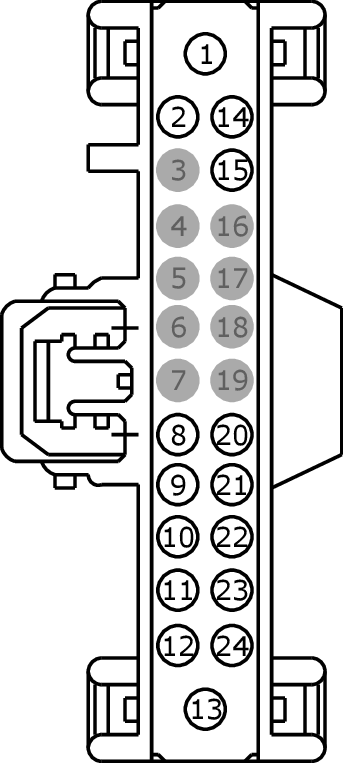

Connector End View (C4821A) - AUDIO FRONT CONTROL MODULE (ACM)

Connector: C4821A

Description

AUDIO FRONT CONTROL MODULE (ACM)

Color

Harness

14B644

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP33 (VT-WH)	18	FUSE - 33 OR CIRCUIT BREAKER
2	CME36 (GN-VT)	22	CTRL MOD. - AUDIO HEAD UNIT # ANTENNA REAR WINDOW AMPLIFIER
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	RME06 (GY-YE)	22	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -
9	RME09 (BN-YE)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -
10	RME07 (WH-BN)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -
11	RME10 (WH-OG)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -
12	RME12 (BN-BU)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -
13	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
14	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
15	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	VME06 (GN)	22	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +
21	VME09 (WH-GN)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +
22	VME07 (WH)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +
23	VME10 (WH-VT)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +
24	VME12 (BN-WH)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses

DVD Player

Module - Audio Control

Module - Body Control

Module Gateway

Radio

Test Connector - Diagnostic
