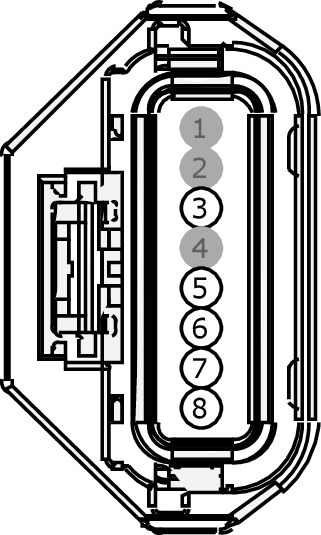

Connector End View (C4570) - SIDE OBSTACLE DETECTION CONTROL MODULE) - RIGHT (SOD-R)
Connector: C4570
Description
SIDE OBSTACLE DETECTION CONTROL MODULE - RIGHT (SOD-R)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | GD313 (BK-GN) | 20 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | |
| 4 | * | * | Not Used | |
| 5 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 6 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 7 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 8 | GD313 (BK-GN) | 20 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1434 |
Service Part Number: FU2Z-14S411-ADA Gauge: 20 Pin material: Silver Cavities: 8 Vehicle Uses Sensor - Blind Spot Detection |
