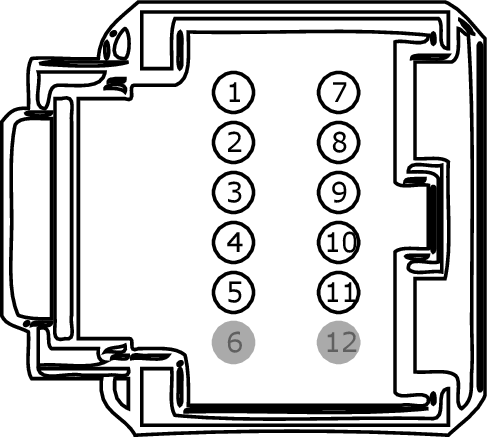

Connector End View (C4237D) - BATTERY ENERGY CONTROL MODULE (BECM)
Connector: C4237D
Description
BATTERY ENERGY CONTROL MODULE (BECM)
Color
GY
Harness
10B694
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VYB38 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 6 | |
| 2 | VYB39 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 7 | |
| 3 | VYB40 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 8 | |
| 4 | VYB41 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 9 | |
| 5 | VYB42 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 10 | |
| 6 | * | * | Not Used | |
| 7 | RYB38 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 6 | |
| 8 | RYB39 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 7 | |
| 9 | RYB40 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 8 | |
| 10 | RYB41 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 9 | |
| 11 | RYB42 (BK) | 22 | THERMISTOR - HIGH VOLTAGE BATTERY 10 | |
| 12 | * | * | Not Used |
