Brake Vacuum Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

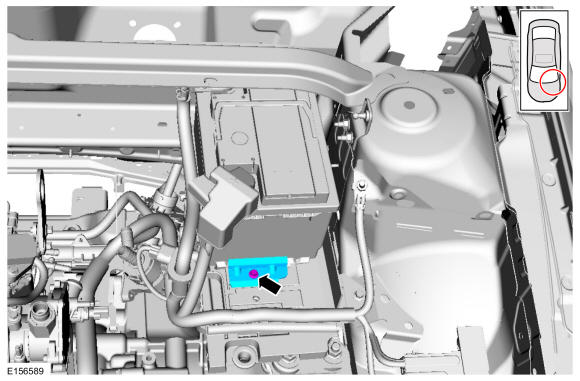

  1. Remove the battery hold down bolt and plate.

    Torque: 89 lb.in (10 Nm)

    GFD190566Courtesy of FORD MOTOR COMPANY

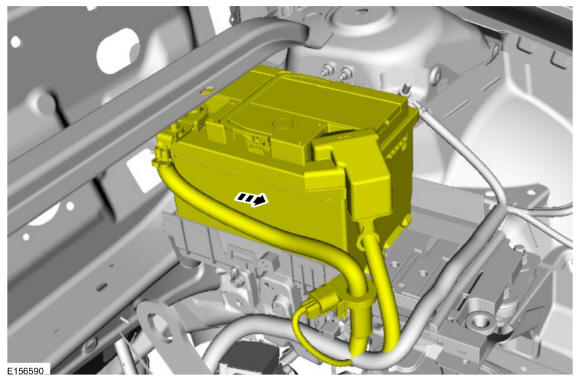

  2. Position the battery forward.
    GFD190567Courtesy of FORD MOTOR COMPANY

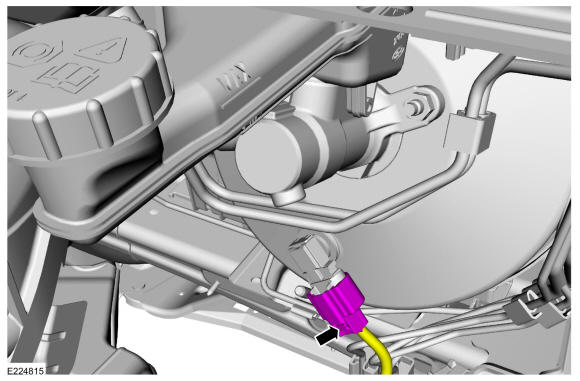

  3. Disconnect the brake vacuum sensor electrical connector.
    GFD190568Courtesy of FORD MOTOR COMPANY

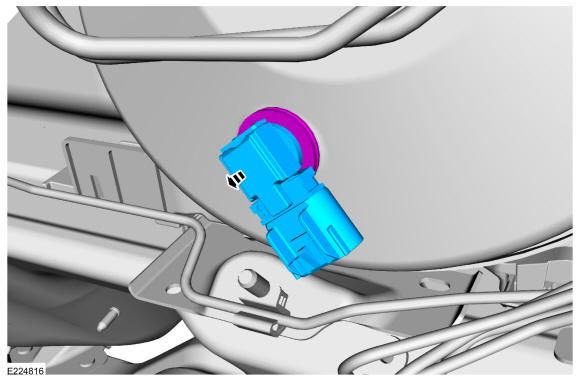

  4. Remove the brake vacuum sensor.
    GFD190569Courtesy of FORD MOTOR COMPANY
