Brake Vacuum Pump - 2.7L EcoBoost (238kW 324PS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

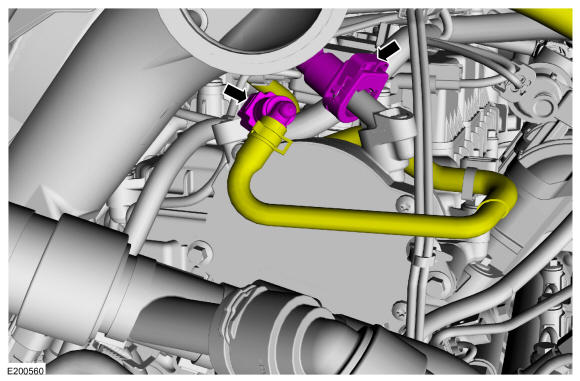

- Disconnect the vacuum tubes.
- Detach the wiring retainer.

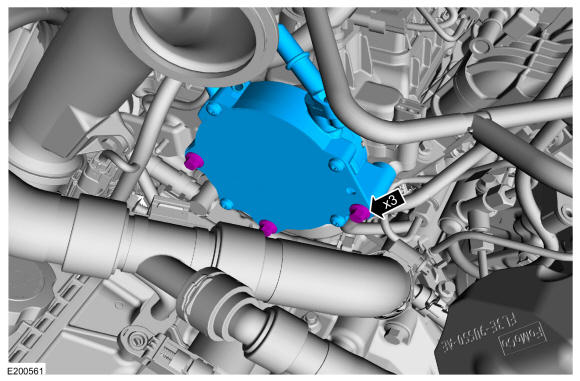

- Remove the bolts and the vacuum pump.
Torque: 89 lb.in (10 Nm)
