Brake Booster: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the battery tray. Refer to: Battery Tray .

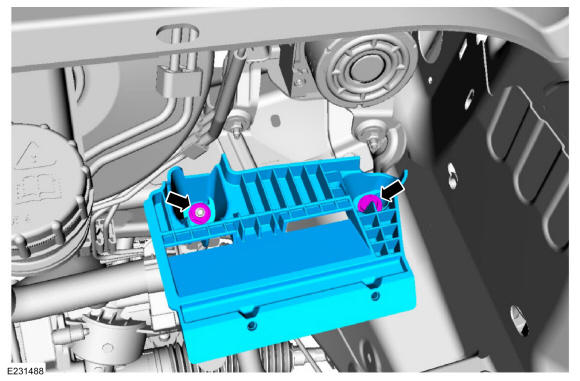

If equipped, remove the nut, bolt and the battery tray support bracket
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

2.5L Duratec (125kW/170PS)

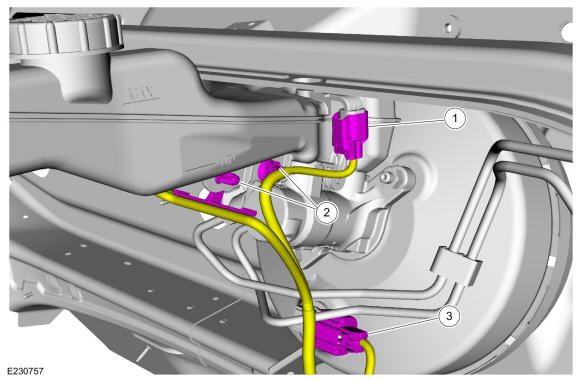

1. Disconnect the brake fluid level sensor electrical connector.
2. Detach the brake tube retainer.
3. Disconnect the vacuum sensor electrical connector and position the wiring aside.
Courtesy of FORD MOTOR COMPANY

2.0L EcoBoost (184kW/250PS) - MI4/2.7L EcoBoost (238kW/324PS)

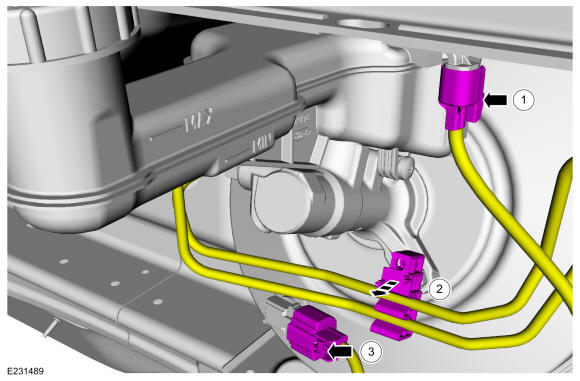

1. Disconnect the brake fluid level sensor electrical connector.
2. Detach the wiring harness retainers.
3. Disconnect the vacuum sensor electrical connector and position the wiring aside.
Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: 2.0L EcoBoost engine displayed.

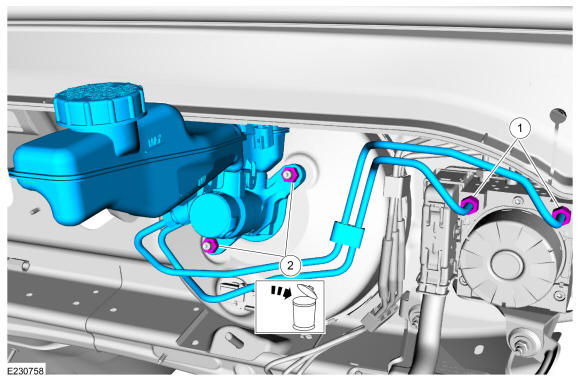

1. NOTE: If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

  NOTE: Make sure that all openings are sealed.

  Disconnect the brake tube fittings.

  Torque: 18 lb.ft (25 Nm)
2. NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.

  Remove the nuts and then remove the brake master cylinder and brake tubes as an assembly. Discard the nuts.

  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

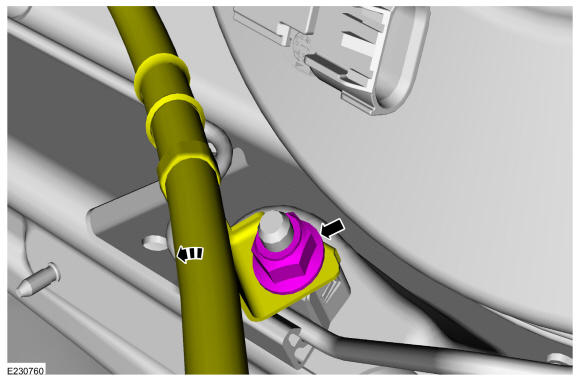

Remove the nut and position the transmission selector lever cable aside.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

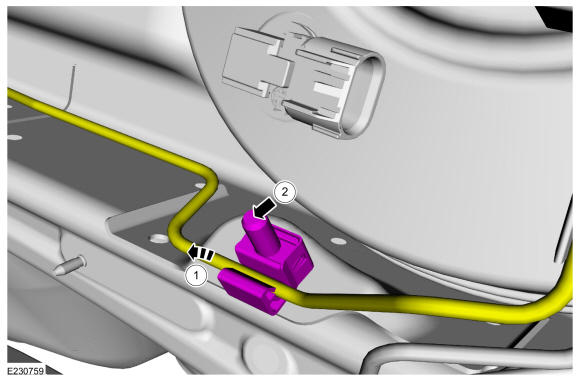

1. Detach the brake tube.
2. Remove the stud bolt and the brake tube retainer.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Refer to: Stoplamp Switch .

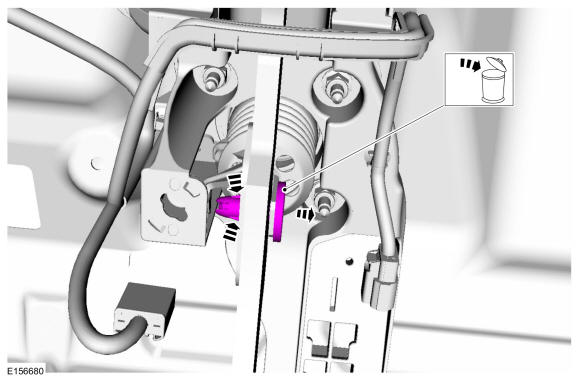

Compress the tabs and remove the clevis pin. Discard the pin.

Courtesy of FORD MOTOR COMPANY

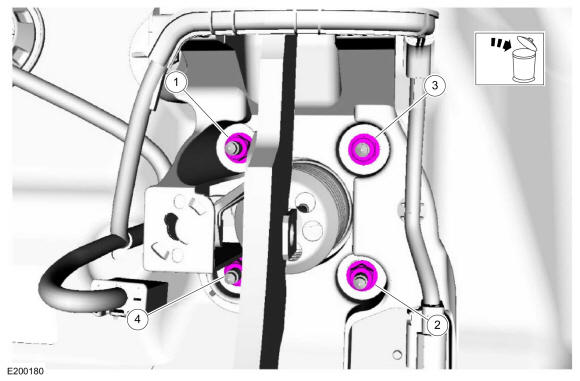

Remove and discard the nuts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

2.7L EcoBoost (238kW/324PS)

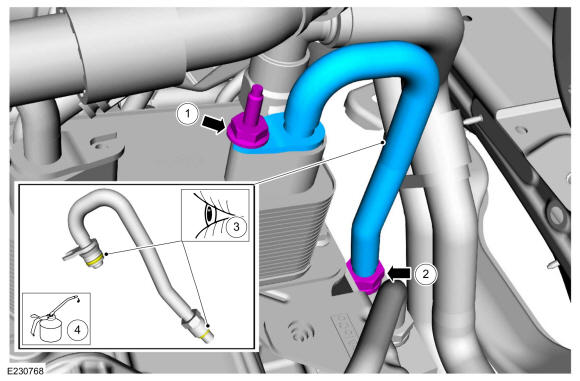

1. Remove the stud bolt.
  Torque: 80 lb.in (9 Nm)
2. Disconnect the fitting and remove the transmission fluid cooler tube.
  Torque: 22 lb.ft (30 Nm)
3. Inspect the O-rings and instal new as necessary.
4. Before installation, lubricate the O-rings with clean specified transmission fluid.
  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
Courtesy of FORD MOTOR COMPANY

All vehicles

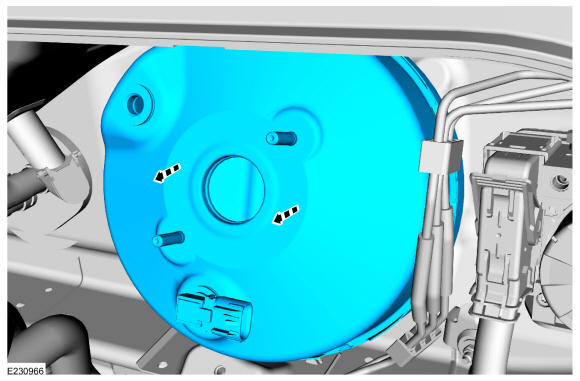

Remove the brake booster.

Courtesy of FORD MOTOR COMPANY
