Fuel Tank Pressure Sensor and Tube - Plug-In Hybrid Electric Vehicle (PHEV): Removal
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the fuel tank. Refer to: Fuel Tank .
- Remove the fuel tank pressure sensor and tube.
- Disconnect the quick release coupling and disconnect the electrical connector. Refer to: Quick Release Coupling .

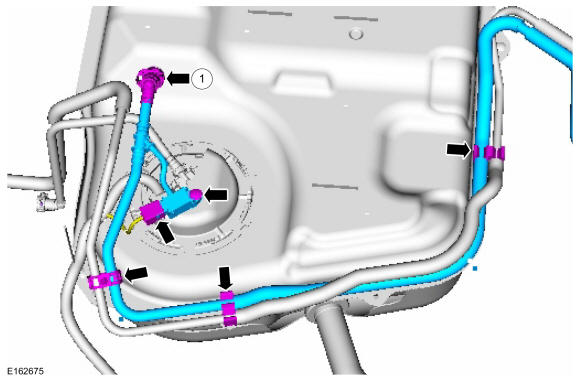

- Remove the fastener and detach the fuel tank pressure sensor and tube routing clips and remove the fuel tank pressure sensor and tube.
