Evaporative Emission Canister Purge Valve: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

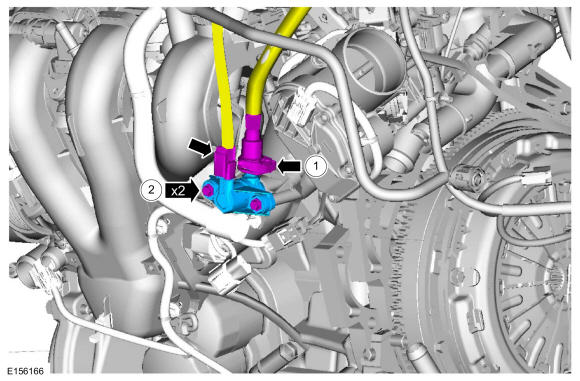

1. Disconnect the quick release coupling and disconnect the electrical connector. Refer to: Quick Release Coupling .
2. Remove the fasteners and the EVAP purge valve.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
