Evaporative Emission Canister - Plug-In Hybrid Electric Vehicle (PHEV): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect .

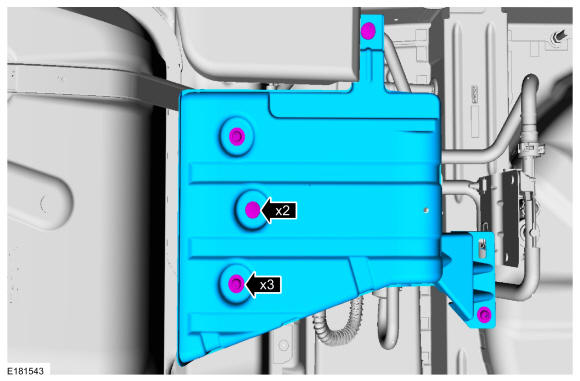

- Remove the fasteners and the shield.

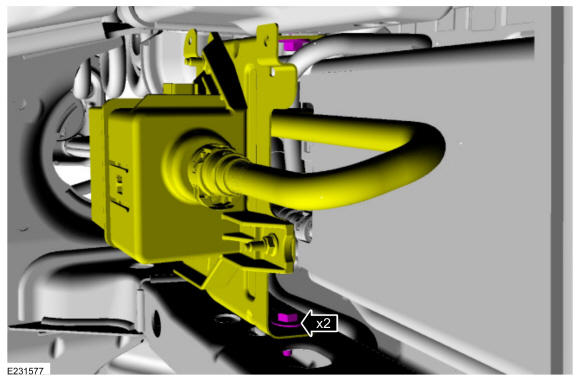

- Remove the bolts from the leak detection filter and pump bracket and position aside.
Torque: 159 lb.in (18 Nm)
-
NOTE: Clean the EVAP canister immediate surrounding area of any dirt or foreign material.

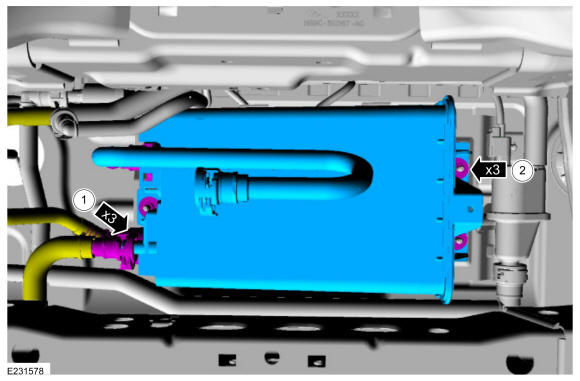

- Disconnect the EVAP canister quick release couplings. Refer to: Quick Release Coupling .
- Remove the nuts and the EVAP canister.
Torque: 80 lb.in (9 Nm)
