Seat Control Switch, Passenger Side (10-Way)

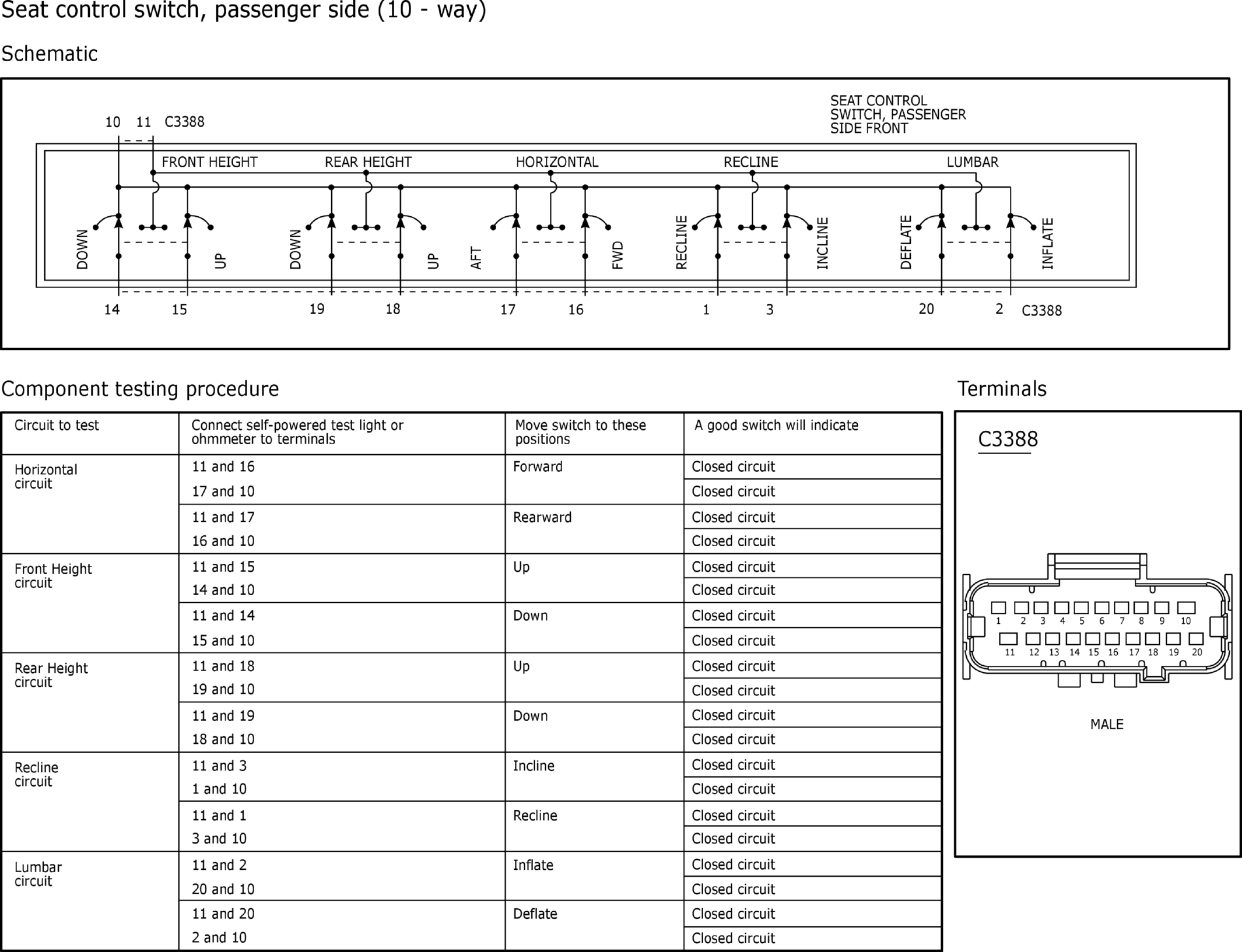

Fig 1: Seat Control Switch, Passenger Side (10-Way)

GFDW81291

Courtesy of FORD MOTOR COMPANY
