Component Testing: Relays

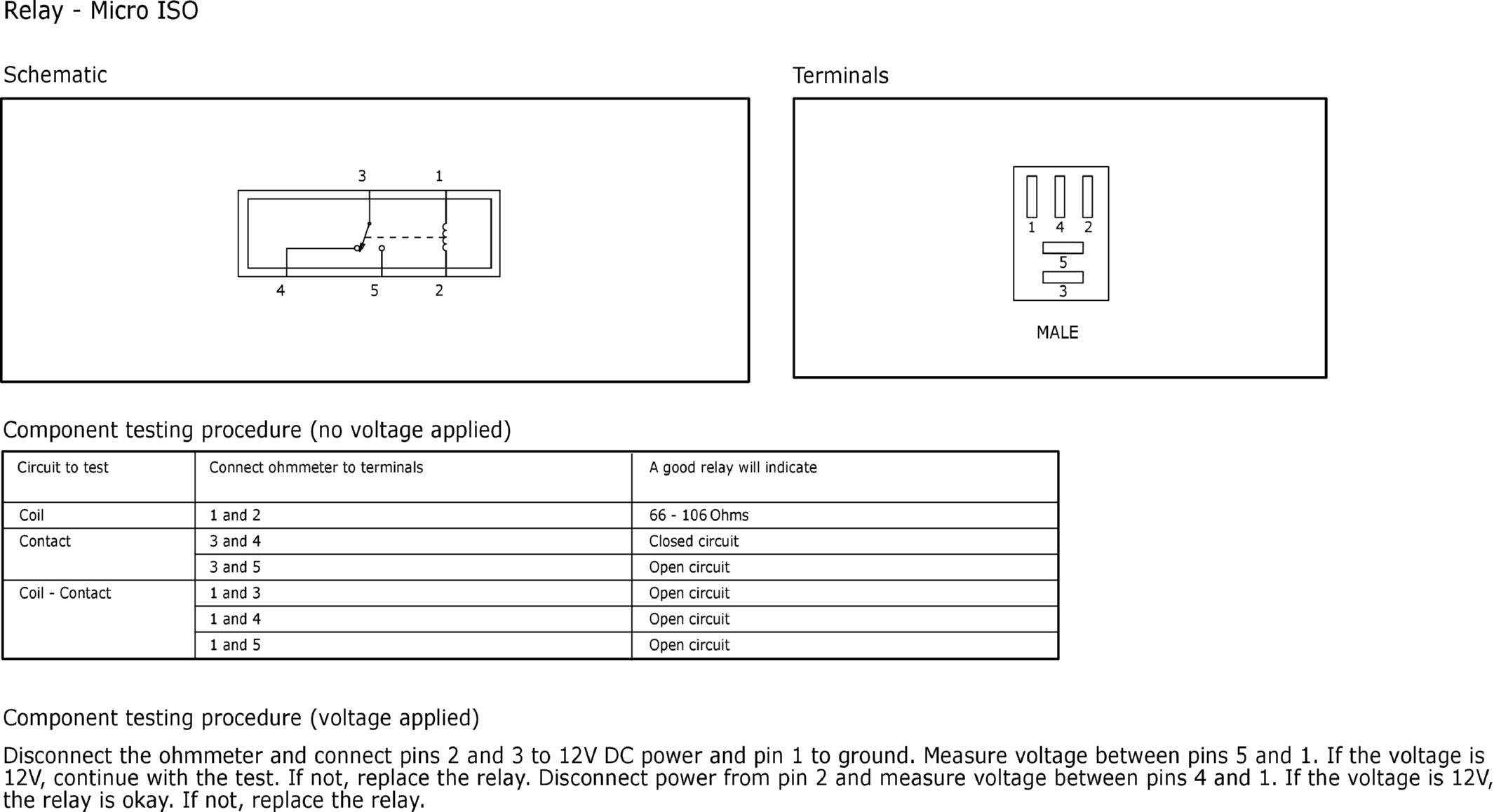

Fig 1: Relay - Micro ISO
GFDW81294Courtesy of FORD MOTOR COMPANY

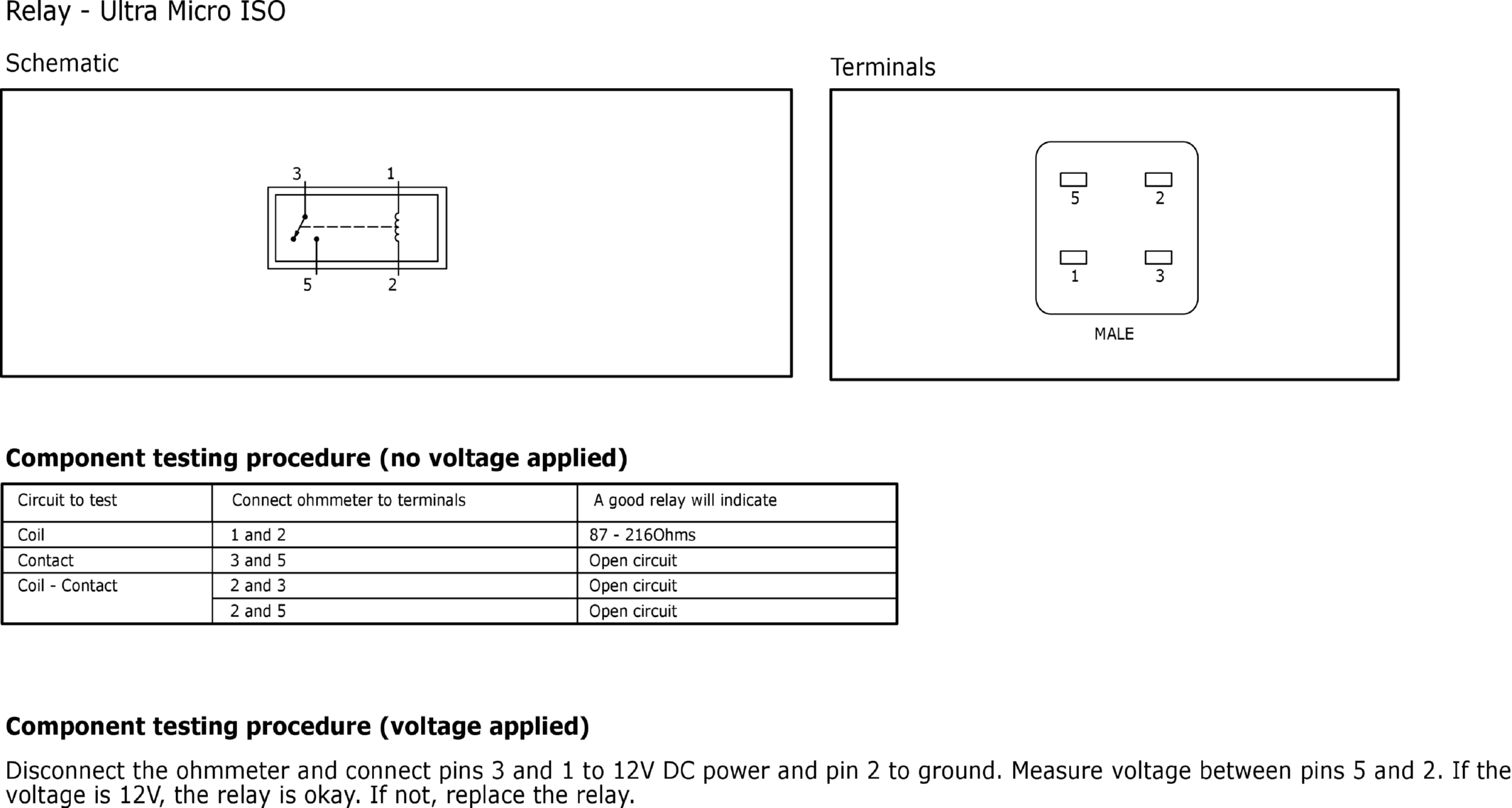

Fig 2: Relay - Ultra Micro ISO
GFDW81295Courtesy of FORD MOTOR COMPANY

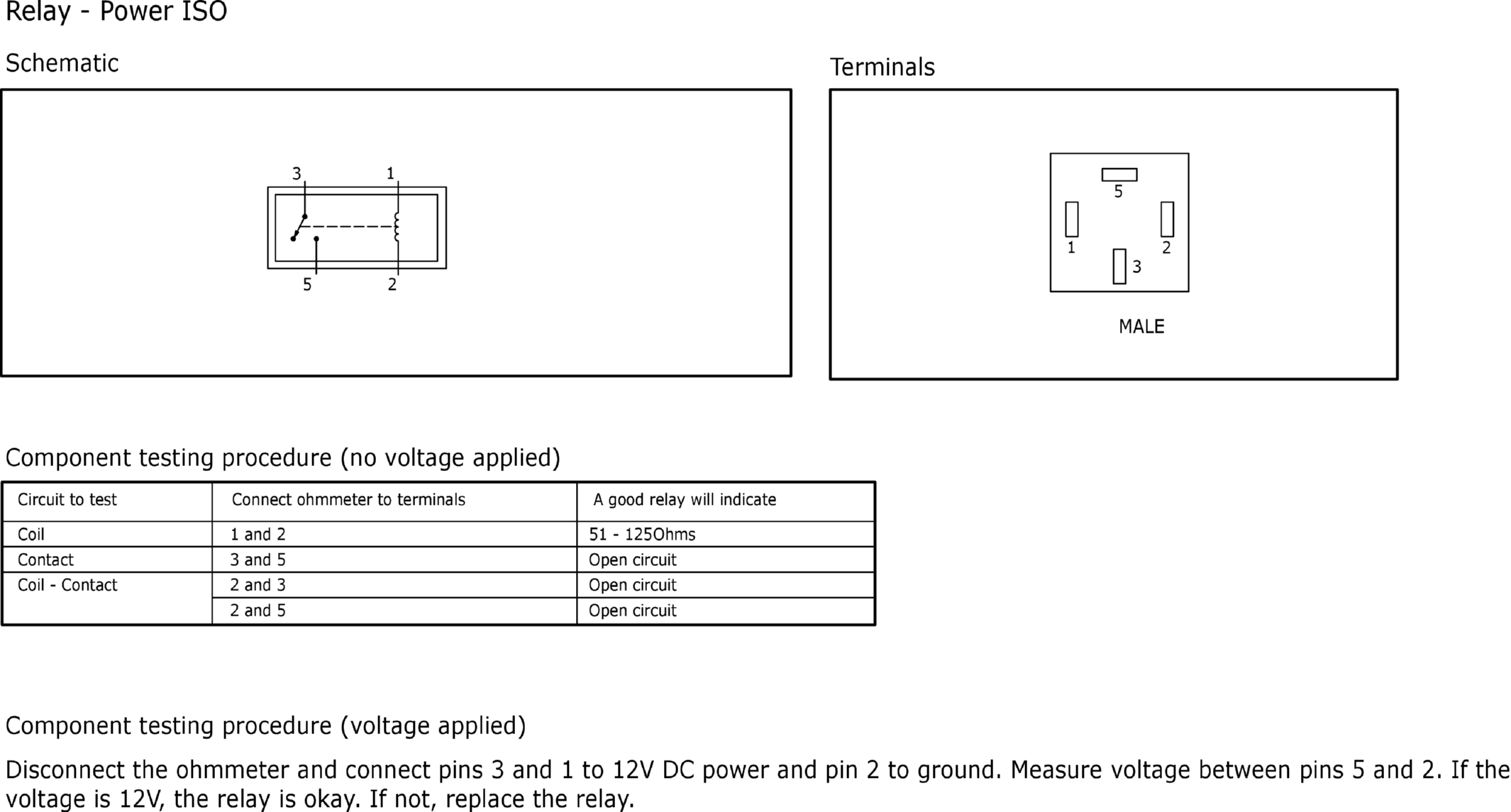

Fig 3: Relay - Power ISO
GFDW81287Courtesy of FORD MOTOR COMPANY
