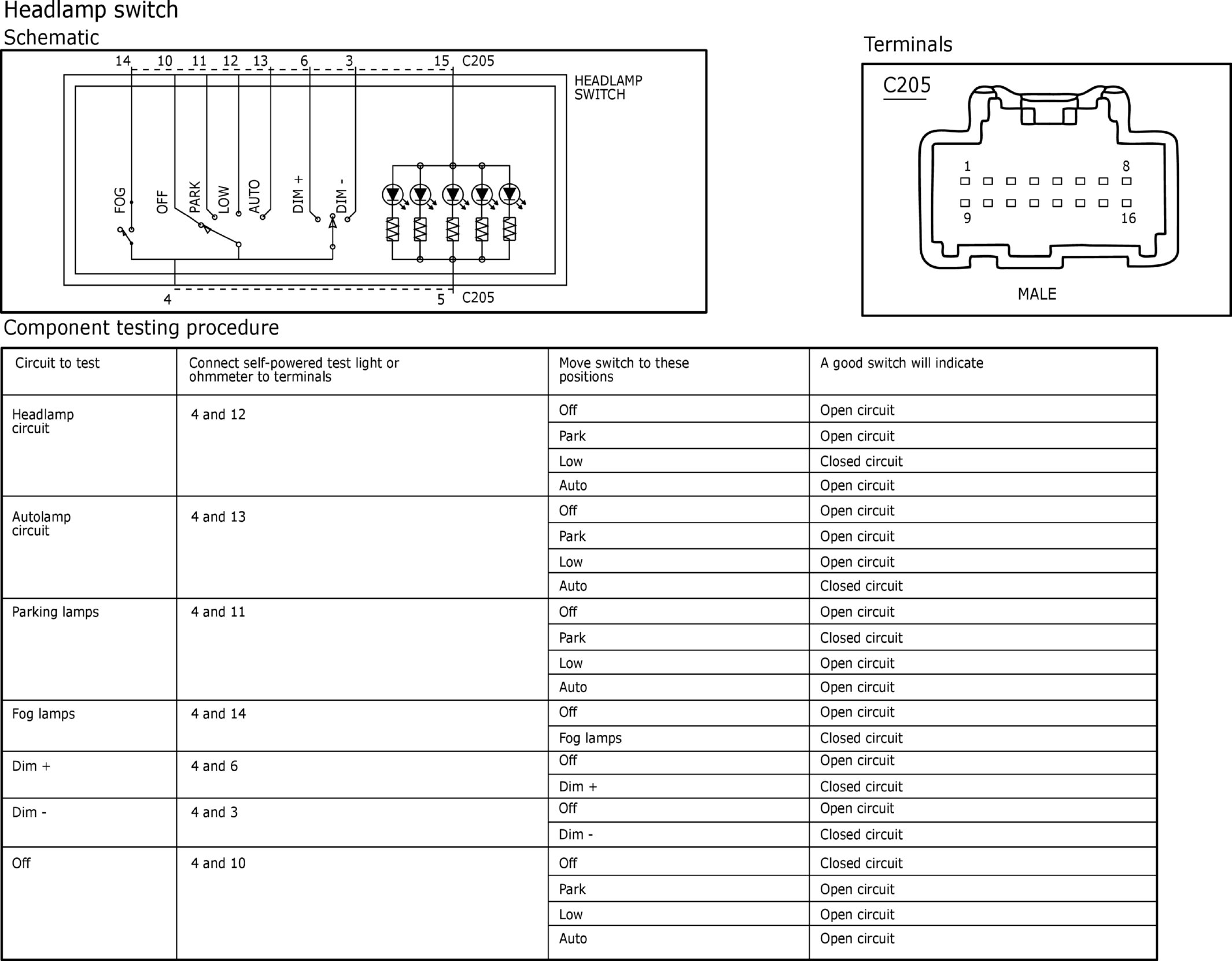

Home >> Ford >> 2018 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams Component Testing - Fusion (Hybrid/ENERGI) >> Component Testing >> Headlamp Switch
